Foot Switch Assembly Replacement

Prerequisites

Overview

Procedure

  1. Raise the Table to maximum height.
  2. Move the Cradle and IMS to OUT limit position.
  3. Remove power from Table by turning off 120VAC, Axial Drive and HVDC switches on Service Switch Panel.
  4. Remove 4 foot pads from the foot switch assembly.
  5. Remove a foot switch cover by unscrewing 3 screws.
  6. Unscrew 4 screws holding the Foot Switch Assembly, and disconnect the cable connector, then remove the Foot Switch Assembly from the foot switch base assembly.

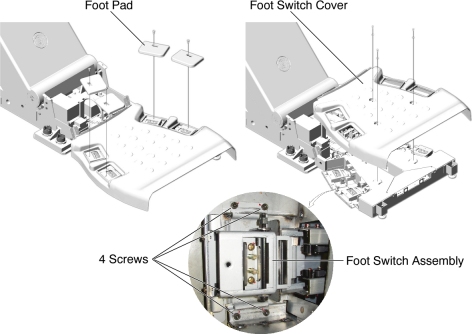

    Figure 1. Foot Switch Assembly Removal

  7. Install the new Foot Switch Assembly by referring to Step 6 through Step 4.

Finalization

  1. Power up the Table from the Service Switch Panel.
  2. Verify that the foot switch function is operating normally.
  3. Turn off all 3 switches (Axial Drive, HVDC, 120VAC), and re-install the foot switch cover and the 4 foot pads.
