Cradle Motor and Cradle Drive Belt Tension Adjustment

Prerequisites

Overview

Procedure

  1. Raise the table to maximum height.
  2. Perform this step if applicable:

    (For Global PET/CT Table, with fixed position IMS) Move the cradle to out limit position.

    (For Global PET/CT Table) Move the cradle and IMS to out limit position.

    (For GT1700 and GT2000 Table) Move the cradle and IMS to out limit position.

    (For GT1700V Table) Move the cradle to out limit position.

  3. Remove power from the table by turning off 120VAC, Axial Drive and HVDC switches on Service Switch Panel.
  4. Remove the following Table component and covers:

    • Cradle

    • Top Cover (Right/Left)

    • Tray-F

    • Front Top Cover

    • Front Left Rail Cover

    Figure 1. Table Covers

    note:

    Cradle Drive Belts will be exposed. See picture below.

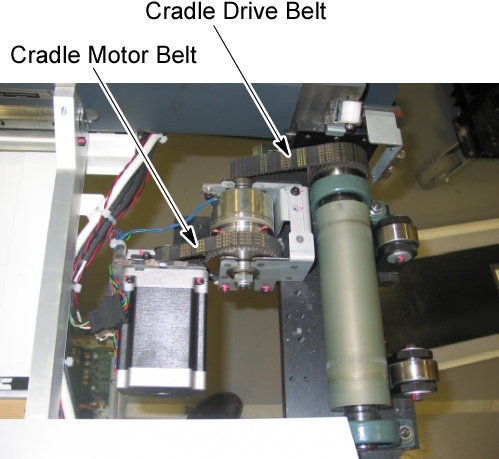

    Figure 2. Cradle Drive Belts

  5. Hold the tension meter sensor on the middle of the upper side of belt, and lightly strum the top of the cradle motor belt in the middle of the belt span to make it vibrate. This is the narrower of the two cradle belts. Measure the frequency and procedure.
    note:

    The closer the meters sensor is to the belt without touching, the better the reading will be.

    A waveform graphic will show up on the LCD screen. After the signal is processed properly, the belt frequency will appear on the screen and a successful measurement on the Gates meter will beep 3 times, and the green LED turns on steady to indicate a successful reading.

    Adjust Belt Tension in small increments. If the frequency is high, loosen the belt. If the frequency is low, tighten the belt.

  6. Compare measurement value to the cradle motor belt frequency spec of (Between 311 and 355 HZ).
  7. If frequency is out of spec, proceed to the following sub-steps:
    1. Loosen 3 bolts shown below.

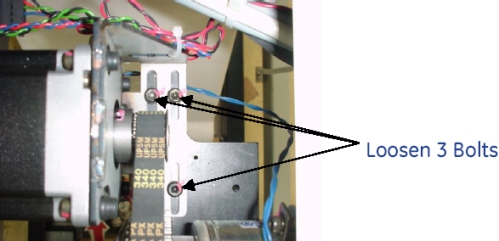

      Figure 3. Cradle Motor Belt Adjustment Bolts

    2. Adjust belt using flat head screwdriver to slide the motor bracket and then tighten the three bolts securely while keeping tension on the belt.

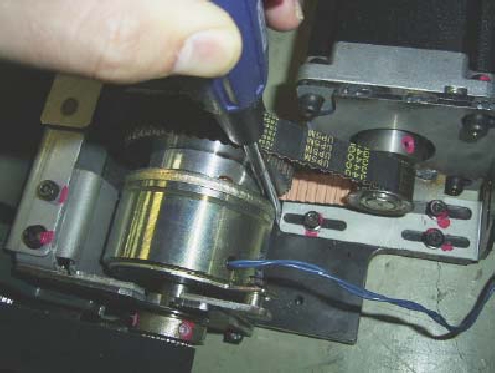

      Figure 4. Cradle Motor Belt Adjustment

    3. Continue to adjust belt and measure frequency until it is within spec.
  8. Hold the tension meter sensor on the middle of the upper side of belt, and lightly strum the top of the cradle drive belt in the middle of the belt span to make it vibrate. This is the wider of the two cradle belts. Measure the frequency and procedure.
    note:

    The closer the meters sensor is to the belt without touching, the better the reading will be.

    A waveform graphic will show up on the LCD screen. After the signal is processed properly, the belt frequency will appear on the screen and a successful measurement on the Gates meter will beep 3 times, and the green LED turns on steady to indicate a successful reading.

    Adjust Belt Tension in small increments. If the frequency is high, loosen the belt. If the frequency is low, tighten the belt.

  9. Compare measurement value to the cradle drive belt frequency spec of (Between 222 and 246 HZ).
  10. If frequency is within spec, reassemble all the covers and verify that all table functions are operating normally. If frequency is out of spec proceed to the following sub-steps:
    1. Loosen 2 bolts on the cradle drive belt tensioner to remove tension on the belt. The bolts are located on the left side of the IMS rail.

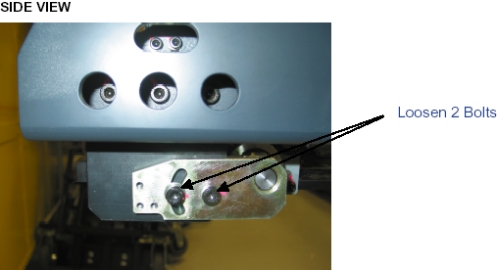

      Figure 5. Cradle Drive Belt Adjustment Bolts

    2. Adjust belt using flat head screwdriver to set the tension on the cradle drive belt. Tighten the two bolts securely while keeping force applied to the screwdriver.

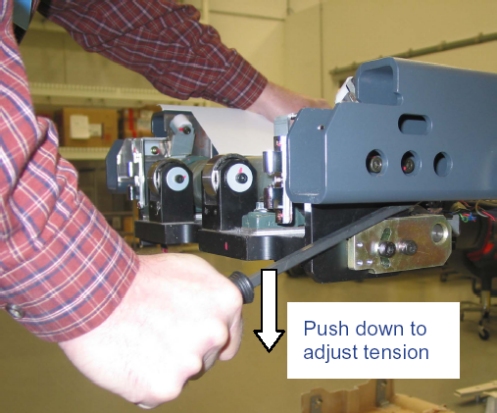

      Figure 6. Cradle Drive Belt Adjustment

    3. Continue to adjust belt and measure frequency until it is within spec.
  11. Reassemble all covers.

Finalization

  1. Power up the table from the service Switch Panel in gantry.
  2. Move the cradle and IMS in and out completely 10 cycles, and verify that table movement is operating normally.

    (For Global PET/CT Table, with fixed position IMS) Move the cradle in and out completely 10 cycles, and verify that table movement is operating normally.

    (For Global PET/CT Table) Move the cradle and IMS in and out completely 10 cycles, and verify that table movement is operating normally.

    (For GT1700 and GT2000 Table) Move the cradle and IMS in and out completely 10 cycles, and verify that table movement is operating normally.

    (For GT1700V Table) Move the cradle in and out completely 10 cycles, and verify that table movement is operating normally.
