LFC Procedure (11BW15.X)

1. Record Autovoice Volume control settings (ALT-F3 by Toolchest, upper right corner).

2. Write down all of the system INFO information on the reconfig screens, including the network information (use the appropriate information sheet, found in Console Information Sheets ).

3. Verify and record specific system hardware configuration.

   1. Open a shell and type the following:

      {ctuser@hostname} cat  /usr/g/config/INFO

   2. Record screen information in Console Information Sheets.

      For an example output, see Example Config/INFO Output.

4. If the console has Connect Pro installed, write down the information when you run installhisris so it can be entered on the new console when installing the Connect Pro option.

5. Close the Service Desktop window in the upper left corner of the screen.

If your system does NOT have “Exam Split” option, skip this section.

Perform these steps before powering down your current Operator Console:

1. Open a Unix Shell and type the following:

   1. {ctuser@hostname} su  –

   2. Password: #bigguy

   3. [root@hostname] ls  –l  ~ctuser/ves/.hesMode

      note:

      There are no spaces in the phrase ~ctuser/ves/.hesMode

2. Examine the results.

   • If the results are similar to:

     -rw-r--r-- 1 ctuser users 0 Apr 3 12:43

     /usr/g/ctuser/ves/.hesMode

     Then HES (Hard Exam Split) mode is configured.

   • If the results show ‘No such file or directory’, then VES (Virtual Exam Split) mode is configured.

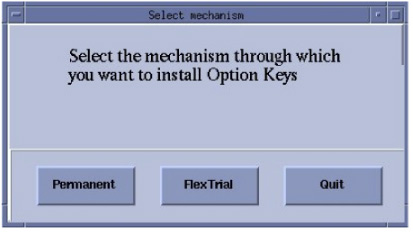

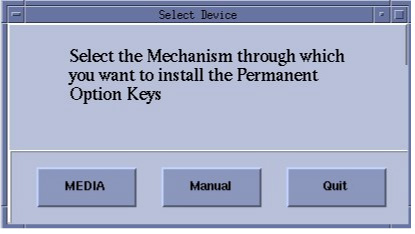

3. Record Exam Split Mode (Hard or Virtual). This info will be used during the LFC Options Installation.

4. Close the Unix Shell

Save the Jedi Runtime parameters, refer to Software-> HV Subsystem Utilities-> JEDI Generator Tool for how to save them.

1. Open a Unix Shell and become root:

   {ctuser@ hostname }   su  -

2. Password: <password>

   note:

   If the Password has not been modified by the site and is not known, the correct course of action is to contact Local GE Service.

3. To determine the Host Computer BIOS version, type the following:

   {root@ hostname }   dmidecode  |  grep  Ver

   Authorized BIOS versions

      Version: 786F5 v01.35 for xw8600

4. Ensure that the Host Computer BIOS version is shown above. If correct, skip the following step. If not correct, perform step 5.

5. If the Host BIOS version is not correct or if you suspect incorrect Host BIOS settings (changes specified by GE from default), follow the instruction below:

   For TIO, see XW8600 Host PC BIOS Setup.

1. Remove the Operator Console's front cover.

2. Remove the Hospital Backbone Ethernet cable from the Console Bulkhead Assembly, located at the rear of the Operator Console.

3. Insert the OS disk into the DVD-ROM drive on the Host Computer.

4. Select one of the following methods to re-power the Operator Console:

   1. If Applications are up:

      1. Select the Shut Down button.



      2. Select Restart then OK to restart the system.



   2. If Application Software is down, at the toolchest open a Unix Shell and type:

      1. {ctuser@hostname} sync

      2. {ctuser@hostname} sync

      3. {ctuser@hostname} halt

      4. The Operator Console monitor will display a System halted message when it is acceptable to power OFF the Operator Console.

      5. Power OFF the Operator Console at the front panel switch.

      6. Wait 30 seconds to allow the disk drive to settle; then power ON the Operator Console at the front panel switch.

5. As the computer restarts, the booting process messages appear. After the booting process completes, the boot: prompt appears.

6. At the boot prompt, type the following depending on system type:

   GEHC2 Enter

   note:

   Special install script for multi-language keyboard support is no longer required for 09BW35.11 or later software. System Configuration (reconfig) script and the new Linux OS supports multi-language keyboards.

   Typing GEHC will result in both scan and display being on one monitor and require a LFC.

7. After the OS is loaded, a red button appears and displays Reboot.

8. Remove the OS disk, when it ejects.

9. Press ENTER to reboot.

10. The Host Computer reboots.

    note:

    Do not insert the Application disk into the Host Computer until the system reboots and the [root@localhost] window appears, displaying the [root@localhost root]# prompt.

1. After the Host Computer reboots, verify that the window appears with the [root@localhost root]# prompt.

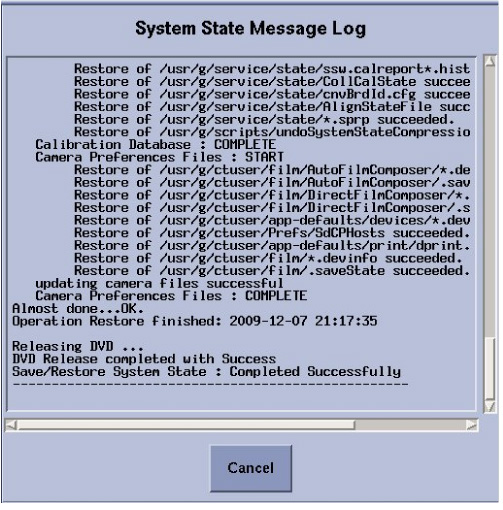

2. Insert System State DVD-RAM into host computer DVD drive

3. Copy INFO and scanRx.db files from DVD-RAM to "/" directory.

   cp -p /mnt/cdrom/service_mod_data/system_state/INFO /

   cp -p /mnt/cdrom/service_mod_data/system_state/scanRx.db /

4. Eject System State bare media from host computer drive

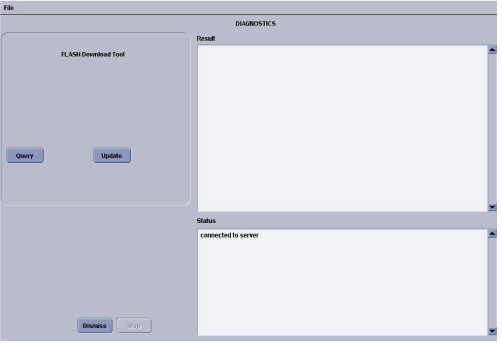

notice FAILURE TO INSTALL THE CORRECT APPLICATION SOFTWARE AND SELECT THE CORRECT SYSTEM DAS HARDWARE CONFIGURATION WILL RESULT IN SYSTEM DOWNTIME AND DCB CIRCUIT BOARD REPLACEMENT. (THIS FAILURE WILL OCCUR AFTER THE FLASH DOWNLOAD PROCEDURE FLASHES THE FIRMWARE.)

1. After the Host Computer reboots, verify that the window appears with the [root@localhost root]# prompt.



2. In the root@localhost window, verify the Peripheral Tower DVD (and MOD drive if it's installed) are present after the OS load:

   mount  /media/cdrom Enter

3. Insert the Application DVD into the DVD-ROM drive on the Host Computer.

4. After approximately 15 seconds a pop-up box appears:



   note:

   If the pop-up box Warning does not appear after two minutes, type the following and wait approximately one minute for the pop-up box to appear.

   mount  /media/cdrom Enter

   /media/cdrom/autorun Enter

5. Select Run Command to run / media / cdrom/ autorun..

6. After approximately 15 seconds, an Installation Utility window appears. (See illustration, below.)



7. Select Load.

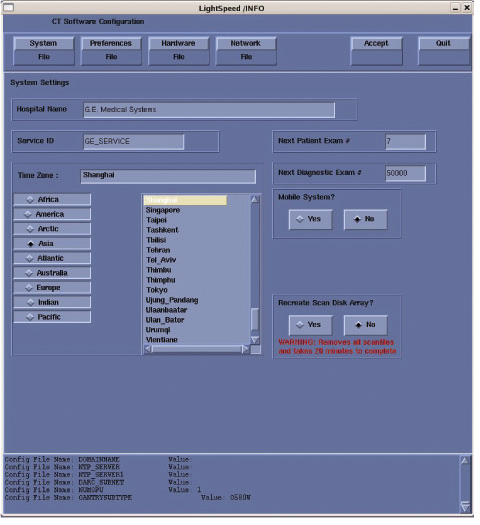

8. Select the System tab.

   See example System Settings screen, below.



9. Verify that the Next Patient Exam # on the System Settings screen is the value restored from Save System State. Otherwise, set to 1.

10. Verify that the proper Time Zone is selected

    Select/enter information as required for your system configuration.

11. Select the Preferences tab.

    See the illustration below, for an example Preference Settings screen.



12. Select the units for patient weight.

13. Select Language: (English or other).

    note:

    To select additional 6 languages: Danish, Swedish, Finnish, Norwegian, Dutch or Brazilian Portuguese, please select English during LFC. After complete all LFC procedures, perform language selection again to preferred language.

14. Select Preferred FastCal KV - select the kV to be calibrated during FastCal. These kVs should include all kVs that the site uses for patient scanning.

15. Select Target Noise Index Table.

    (Default is Table 2.)

16. Verify proper Date Format is selected.

17. Verify proper Time Format is selected.

18. Select AutoVoice Language.

19. Verify Modified in Room Start is set to Off. Sites in Japan must be set to On.

20. Set HIPAA Present to OFF unless the customer requests HIPAA to be ON.

21. Select the site preferred Dose Information Display option for the site to use in monitoring calculated Patient Dose (on view edit screen):

    Select ON (full DOSE Display) or previous Customer setting.

    note:

    A scroll bar below this menu may be present. It contains the System Information from the INFO file System State.

22. Select the site-preferred Dose Record option for the site. Default is ON. The dose information is saved in a DICOM structured report. The DICOM standard defines a new DICOM X-RAY Radiation SR SOP class, which the other systems must support. The Dose SR feature saves an exam’s dose information in this format.

    ON = Saves the dose information in a DICOM Enhanced SR SOP Class.

    OFF = Turns off the option.

    FULL = Saves the dose information in a DICOM X-Ray Radiation Dose SR SOP Class.

23. Set Flip and Rotate to OFF as default. Configures the preference for allowing the Flip and Rotate feature to be turned on in the User Interface on the (Left) SCAN monitor. This preference allows the customer to apply custom orientation changes based on Exam Type and reconstructions methods on the DICOM images that will be transferred to PACS and related systems.

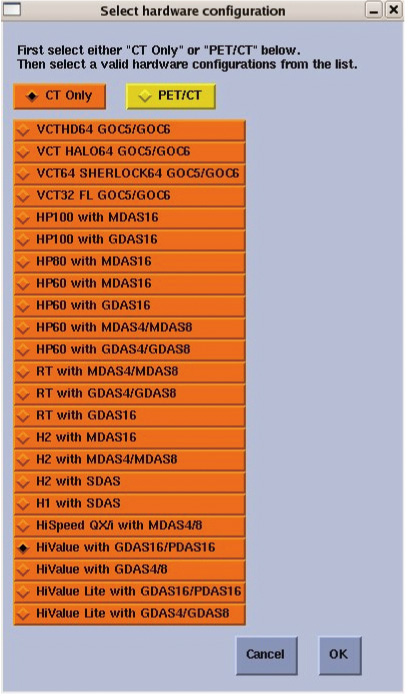

24. Click on the Hardware Settings (orange button) to access the Select hardware configuration screen. Below Illustration only show example for hardware configuration screen. Select the proper configuration for each system. See Table 2



    note:

    FAILURE TO INSTALL THE CORRECT APPLICATION SOFTWARE AND SELECT THE CORRECT SYSTEM DAS HARDWARE CONFIGURATION WILL RESULT IN SYSTEM DOWNTIME AND DCB CIRCUIT BOARD REPLACEMENT. (THIS FAILURE WILL OCCUR AFTER THE FLASH DOWNLOAD PROCEDURE FLASHES THE FIRMWARE.)

    Click on the CT ONLY. then Select your System types HW Parameters, and select OK.

25. Select the Network tab.

    See example Network Settings screen, below.



26. Configure Network Settings:

    1. Suite Name - The Suite Name must utilize uppercase letters. It must start with a letter, followed by 3 alphanumeric characters. The total must be four characters long. It is suggested that you choose CT01 for the first scanner (CT02....), unless a different Suite Name is required.

    2. Station Name - The Station Name identifies the text that is stored in the DICOM attribute “Station Name” (DICOM TAG 0008,1010) in all CT images created. Some PACS systems may use the Station Name attribute or system tracking for identification of the scanner where the CT images were generated. Typically, the Host Name and Station Name are the same.

       note:

       The Station Name defaults to the Host Name if it is left blank. If entered it:

       • MUST NOT exceed 16 characters

       • MUST only contain the following characters: a through z, A through Z, 0 through 9, - and _

       • MUST have at least one Alpha Character (A-Z or a-z) or Special Character (_ or -)

    3. Host Name

       note:

       The Host Name identifies the hostname and AE Title of the scanner. It:

       • MUST NOT exceed 16 Characters.

       • MUST only contain the following characters: a through z and 0 through 9

       • MUST have at least one Alpha Character (A-Z or a-z) or Special Character (_ or -)

    4. IP Address - Site supplied address.

       note:

       Perform below procedures if your customer Ethernet backbone begins with 10.0.1xx, OR if the scanner will connect to a device with an IP address of 10.0.1.xx. Below steps are not be applicable for Console without DARC

       1. If hospital backbone starts with 10.0.1.xx and this is the first time install, change the DARC subnet by checking the Change DARC subnet box, and fill in the following value: 169.254.0. Continue and complete the software load on the Host computer.

       2. If hospital backbone starts with 10.0.1.xx, and the DARC subnet was already changed, verify that Change DARC subnet box is checked and a subnet is already filled. Continue and complete the software load on the Host computer.

       3. If the DARC subnet was already changed and needs to be set to the 10.0.1 subnet, deselect the Change DARC subnet box. Continue and complete the software load on the Host computer.

    5. Net Mask - Site supplied address.

       note:

       If the hospital backbone IP address is 192.9.220.xx, then the Net Mask must be set to 255.255.255.252.

    6. Broadcast Address - Site supplied address.

    7. Default Gateway - Site supplied address.

       note:

       Make sure the NUM LOCK button on the keyboard is not active. If it is, deselect it to enable the ACCEPT button in the next step. Failure to deactivate the NUM LOCK results in load issues.

    8. If your customer has AW Direct Connect, then select Enable AW Direct Connect?. Complete the LFC, making certain to configure this feature in AW Direct Connect. (Do not configure AW Direct Connect now.)

    9. If there is an Internal Option - Internal Subnet setting displayed and checked, then un-check it. (This option might not appear on your system.)

    10. Verify with customer’s network administrator if they have NIS. If they do, ensure the Advanced Options and Use NIS? boxes are checked. If they don’t, ensure these selections are not checked.

        1. Domain Name: add your name here (get name from customer’s network administrator).

        2. Enter the IP Address of Internal Server: add your IP address here (get IP address from customer’s network administrator).

    11. If your customer wants to synchronize the system time to their NTP server, then select Enable Network Time Protocol, and enter the Primary Server IP address.

    12. At Enable TCP Segmentation Offload?, the default selection is On. In some situation, TCP Segmentation Offload can't work normally. Please select No at this time.

27. Select the ACCEPT button at the right corner of the User Interface.

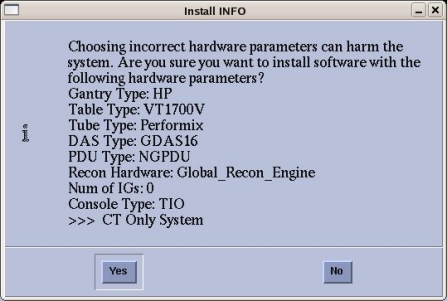

28. An Install INFO pop-up box is displayed.

    See the following illustration, for a typical Install INFO message (the Install INFO message is different for each system configuration).



29. Select yes, if correct, and wait for system to reboot.

    note:

    If the information is not correct, select the NO button. This returns you to the Hardware screen. Select the Hardware Parameters Selection button and select the correct system configuration from the displayed list. Select the Accept button again, followed by the YES button on the Install INFO pop-up to accept the new hardware configuration.

30. The following pop-up message appears:

    Please make sure the CT Application SW is in the drive - the system will be rebooted.

    No action is required for this pop-up. The system will automatically reboot after approximately 10 seconds if the OK button is not selected.

    note:

    Do not remove the Apps DVD from the Host Computer until instructed to do so.

31. As the system reboots, the following shell Installation screen appears and the application software starts loading.



32. When the system prompts you to reboot (after approximately 13 minutes), Select Yes. The system is going down for reboot NOW.



    note:

    During the reboot of the console, a message may appear to the effect that the system was not able to determine what the tube type was and to run the TIC tool. This message should be ignored at this point.

33. After approximately 3 minutes, a pink pop-up box appears, stating CT Software Auto-Start Disabled. In this box, select OK.



    note:

    Follow the next procedure, Do NOT type “startup” at this time

34. Press the button on the DVD drive to remove the Apps DVD from the Host Computer.

35. Open a shell, remove /scanRx.db:

    rm /scanRx.db

    note:

    If scanRx.db file still remains in “/” directory, Reconfig does not show correct information in next time.

Confirm the Host Computer Software type. The software section of the version output should match example shown.

1. Open a Unix Shell and type the following to see software and hardware Config information:

   {ctuser@hostname} cd  /usr/g/bin

   {ctuser@hostname} swhwinfo

   11BW15.x. <hardware revision info here>

   Example: 11BW15.4.WB_H_G16_G_GTL650

2. Confirm that the swhwinfo results match the software revision shown on the Applications Disk.

   • If the revisions match, continue with this procedure.

   • If the revisions do NOT match, reload the software (Load from Cold Installation Procedures).

3. Type: cat  /GEHC*

   Release: GEHC/CTT Linux 6.3.10

   Built: Tue Mar 24 10:40:25 CDT 2009

4. Confirm that the cat result matches the Operating System version shown on the OS disk.

5. Close the Unix Shell.

1. Open a Unix Shell.

2. If Application software is up, perform{ctuser@hostname}cleanMon.

3. In the Unix Shell, become root:

   {ctuser@ hostname }   su  -

4. Password: <password>

   note:

   If the Password has not been modified by the site and is not known, contact Local GE Service.

5. Perform the following steps to install the Service Pack CD:

   1. [root@ hostname ]# start_udev

   2. A message will return: OK

   3. Wait 15 seconds after the OK is returned, then type the following install script:

      [root@ hostname ]# patch_install -c

      note:

      If the Service Pack fails to install, perform [root@hostname]#start_udev. Wait 15 seconds after OK, then retry the Service Pack.

      Any patches on the Service Pack CD will be listed. Before installation of each patch, the window will wait for user's confirmation as follows:

      I will install update Patch Name , is this ok ? [y/n]

   4. Input y to install this patch.

      note:

      Service Pack CDs will include any new patches and all older patches that are still applicable. Load all the patches included in the latest Service Pack CD.

   5. After installing the Service Pack CD, type patch_status (Class M service key inserted is required to use this command) in the Shell window to determine which Service Pack patches were installed (if any). The following is an alternate command to verify the Service Pack load:

      [root@ hostname ]# showprods | grep  -i ServicePack

   6. Type:[root@hostname]#reboot

      note:

      A reboot is always required after a patch is installed. Additional processes may be required for installing certain Service Pack media. Refer to the instructions sent with the Service Pack.

If HIPAA is turned ON, then configure it now. (Refer to HIPAA Configuration) When HIPAA configuration is complete, return to this procedure.

For general information on Product Network Filters, please see Product Network Filter Theory.

If your customer has special network requirements, then proceed to Configure Product Network Filters now. When PNF configuration is complete, return to this procedure.

If the site requires the configuration of AW Direct Connect, then configure it now (see AW Direct Connect). When configuration is complete, return to this procedure.

notice NEVER Use CTRL - ALT - DELETE to reboot the host computer. This technique will NOT reboot all console subsystems, and as such is an unacceptable practice.

To restart the system:

1. Replace the Hospital Backbone Ethernet cable to the Console Bulkhead Assembly (located at the rear of the Operator Console).

2. Open a Unix shell and type the following:

   {ctuser@ hostname }   sync

   {ctuser@ hostname }   sync

   {ctuser@ hostname }   reboot

When the system comes up the following screen will be displayed if HIPAA Present was set to On during the LOAD process. Verify the admin screen below has the following 'Select user':

• Select user: root

• Password: #bigguy
