DAS External Cabling Pinouts

1 External Interface Pinouts

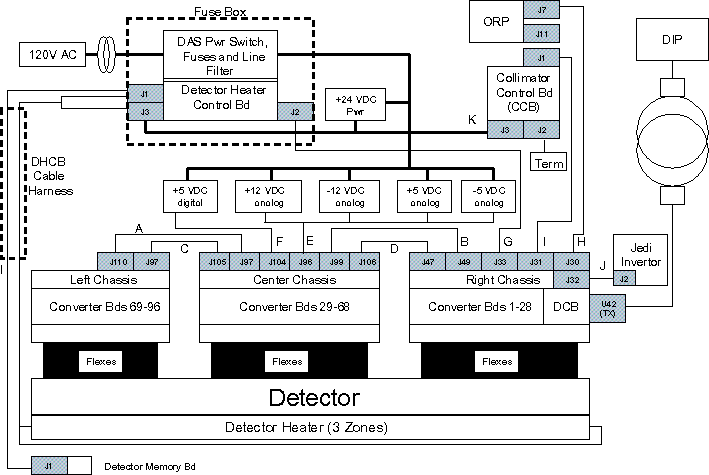

Figure 1. MDAS 16 Interface Pinout Block Diagram

note:

Letters next to Interconnect Cables represents further detailed descriptions in following sections.

2 Cable A

MDAS 16 Power Cable between Center (J97) and Left MDAS 16 Chassis (J110)

3 Cable B

MDAS 16 Power Cable between Center (J99) and Right MDAS 16 Chassis (J49)

4 Cables C & D

DAS Data Cables between Left DAS Chassis, Center DAS Chassis and Right DAS Chassis.

5 Cable E

MDAS 16 Power Harness from MDAS 16 Power Supplies to Center MDAS 16 Chassis

6 Cable F

MDAS 16 Logic Power Harness from MDAS 16 Power Supplies to Center MDAS 16 Chassis

7 Cable G

MDAS 16 Cable (RS-232) between DCB (J33) and DHCB (J2)

8 Cable H

MDAS 16 Cable (CAN) between ORP (J7) and DAS RIGHT CHASSIS (J30)

9 Cable I

MDAS 16 Cable from Collimator (J1) to DAS CAN (J31).

10 Cable J

Analog Interface Cable from Right DAS Chassis (J32) to JEDI INVERTOR (J2). The Analog Interface Cable is used for monitoring the KV & MA analog control voltages.

11 Cable K

MDAS 16 Cable, DET/DHCB (J1,J3)/DMB (J1)/Collimator (J3)
