Tube Install Certification

Prerequisites

Overview

This document provides the necessary steps to configure the Tube Install Certification.

1 Non-GE Service Personnel

Procedure

  1. Record X-ray Tube Insert Model Number on X-ray tube rating plate.
  2. Select CONFIGURATION from Service Desktop.
  3. Select TUBE INSTALL CERTIFICATION. A screen, as depicted in Figure 1, is displayed.

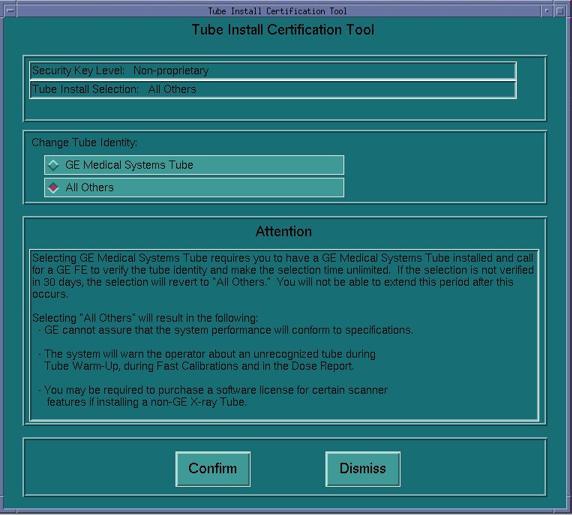

    Figure 1. Initial Tube Install Certification Tool Screen

  4. If X-ray tube rating plate Tube Insert Model Base Number is 2291563, click GE MEDICAL SYSTEMS TUBE from Tube Install Certification Tool Change Tube Identity pane.

    If X-ray tube rating plate Tube Insert Model Base Number is NOT 2291563, click ALL OTHERS from Tube Install Certification Tool Change Tube Identity pane.

  5. Click CONFIRM. A Confirmation screen, as depicted in Figure 2 or Figure 3, is displayed.

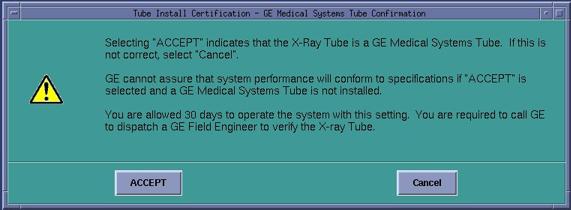

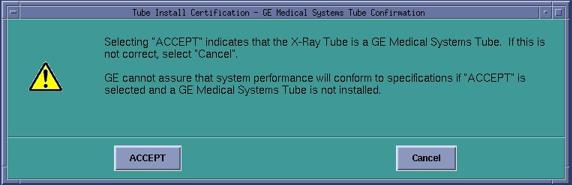

    Figure 2. GE Medical Systems Tube Confirmation Screen

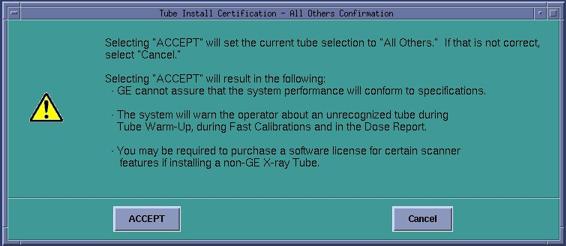

    Figure 3. All Others Tube Confirmation Screen

  6. Click ACCEPT. Tube Install Certification Tool top pane is updated as depicted in Figure 4 or Figure 5.
    note:

    For GE Medical Systems Tube configuration, the Tube Install Certification Tool displays the number of Days Remaining in the Trial Period. A certified GE Field Service Engineer must confirm the tube identity during the trial period. If the trial period expires before a certified GE Field Service Engineer confirms the tube identity, the system will automatically default to "All Others" functionality.

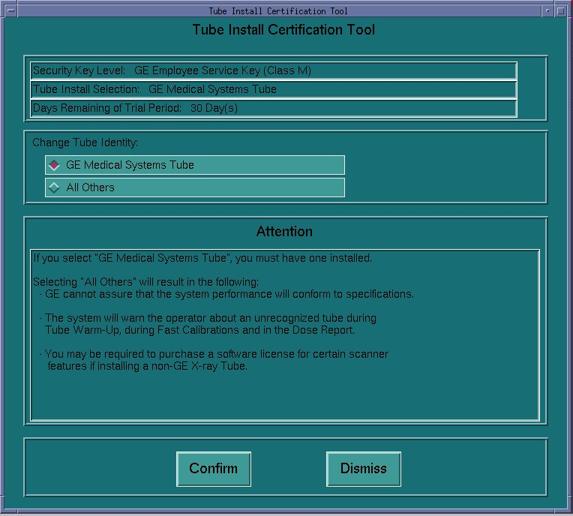

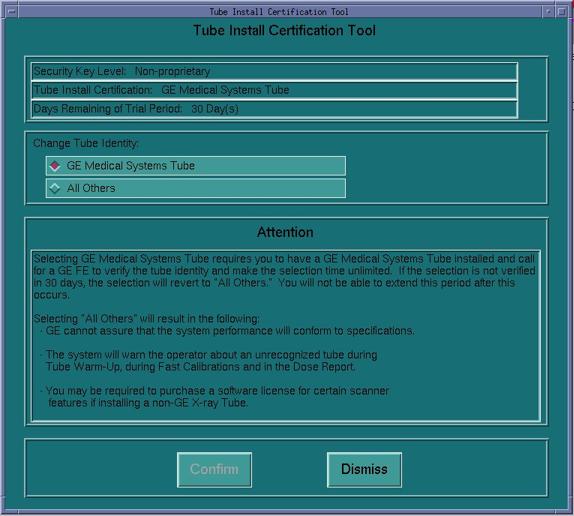

    Figure 4. GE Medical Systems Tube Install Certification Screen

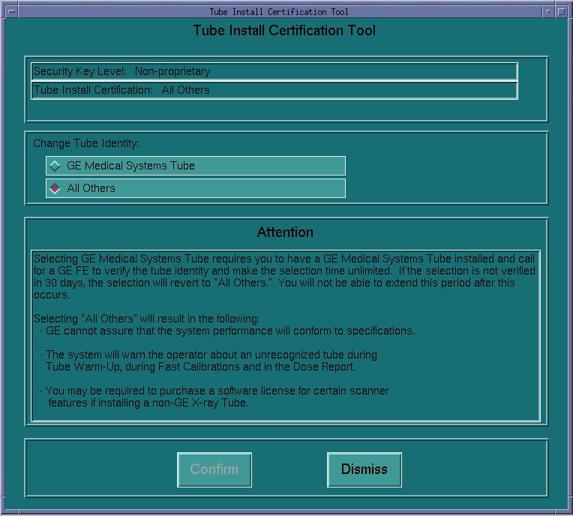

    Figure 5. All Others Tube Install Certification Screen

  7. Click DISMISS.
  8. If an Attention window is displayed, read and click OK.
  9. Restart system.
  10. If Tube Install Certification is configured for a GE Medical Systems Tube and Trial Period has not expired, contact GE Call Center and create a dispatch for a Field Service Engineer to finalize Tube Installed Certification on-site.

2 GE Service Personnel

Perform the following steps when originally setting Tube Install Certification or verifying a GE Medical Systems Tube installation, within trial period, with an active GE Class M service USB key.

Procedure

  1. Insert and activate Class M Service key.
  2. Record X-ray Tube Insert Model Number on X-ray tube rating plate.
  3. Select CONFIGURATION from Service Desktop.
  4. Select TUBE INSTALL CERTIFICATION. A screen, as depicted in Figure 6 or Figure 7, is displayed.

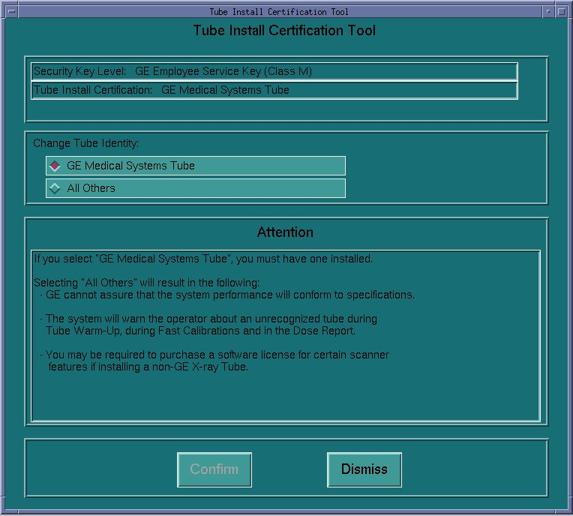

    Figure 6. GE Medical Systems Tube Install Certification Initial Screen

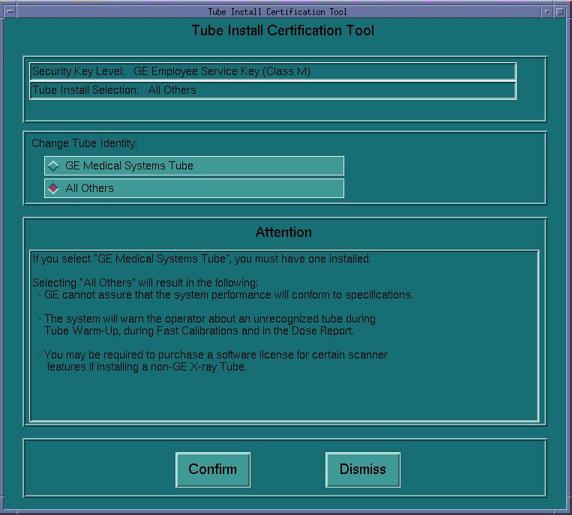

    Figure 7. All Others Tube Install Certification Initial Screen

  5. If X-ray tube rating plate Tube Insert Model Base Number is 2291563, click GE MEDICAL SYSTEMS TUBE from Tube Install Certification Tool Change Tube Identity pane.

    If X-ray tube rating plate Tube Insert Model Base Number is NOT 2291563, click ALL OTHERS from Tube Install Certification Tool Change Tube Identity pane.

  6. Click CONFIRM. A Confirmation screen, as depicted in Figure 8 or Figure 9, is displayed.

    Figure 8. GE Medical Systems Tube Confirmation Screen

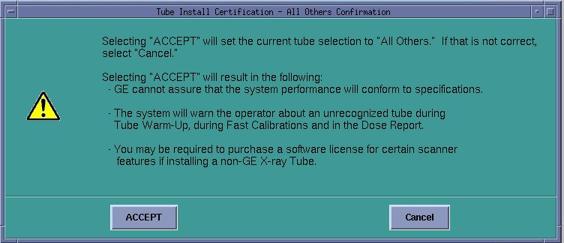

    Figure 9. All Others Tube Confirmation Screen

  7. Click ACCEPT. Tube Install Certification Tool top pane is updated as depicted in Figure 10 or Figure 11.

    Figure 10. GE Medical Systems Tube Install Certification Screen

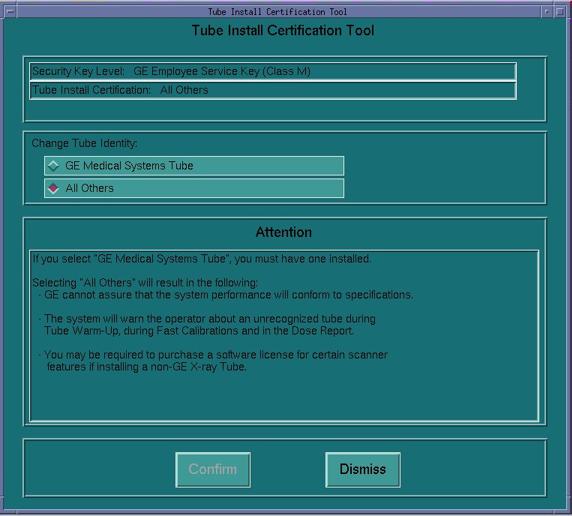

    Figure 11. All Others Tube Install Certification Screen

  8. Click DISMISS.
  9. Restart system.
  10. Deactivate and remove Class M Service key.

3 Finalization

No finalization steps.
