SCIM and ICOM Functional Checks

Prerequisites

Overview

The following is a procedure for checking the functionality of the SCIM and ICOM Assemblies for proper operation.

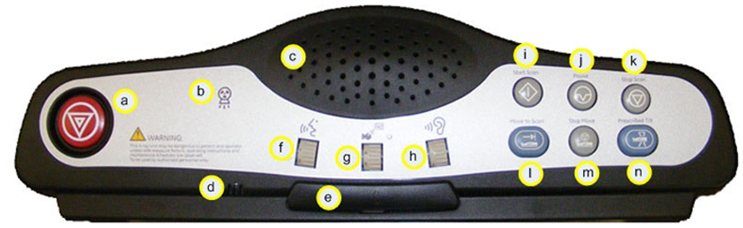

Figure 1. Scan Control Interface Module (SCIM)

1 Emergency Stop

Procedure

  1. Start any basic CT scan, wait till X-Ray exposure has started and then press the Emergency Stop Button (a).
    1. Any Gantry or Table motion shall stop.
    2. Any X-Ray exposure in process shall stop; Exposure Indicator (b) shall not be illuminated.
    3. Reset Gantry key on Gantry Control Panel shall flash once every two seconds.
  2. Press Reset Gantry key on Gantry Control Panel to return System to normal operation.

2 Intercom (ICOM)

Allows communication with the Scan Room.

note:

Requires assistant to be in Scan Room.

Procedure

  1. Press Talk Bar (e) and speak towards the Intercom Microphone (d).
  2. Volume Control (f). This dial controls the volume of the Operator’s voice to the Patient. Speak into the Microphone (d) and vary the dial, with assistant listening in Scan Room.
    1. An upward adjustment of the dial increases the volume.
    2. A downward adjustment of the dial decreases the volume.
  3. Volume Control (g). This dial controls the volume of the Autovoice to the Gantry. Select Protocol Management / Autovoice on the Scan Monitor and play a pre-recorded voice message.
    1. An upward adjustment of the dial increases the volume on Speaker in Gantry.
    2. A downward adjustment of the dial decreases the volume on Speaker in Gantry.
  4. Volume Control (h). This dial controls the volume of the patient’s voice to the operator. Have assistant talk in Scan Room close to Gantry.
    1. An upward adjustment of the dial increases the volume on Speaker (c).
    2. A downward adjustment of the dial decreases the volume on Speaker (c).

3 Scan Controls

Procedure

  1. Start Scan (i). Setup and run any basic CT scan with a prescribed Gantry tilt and Cradle start position.
    1. The Start Scan indicator flashes green once the tube has reached exposure speed.
    2. Start Scan will flash for 30 seconds before timing out.
    3. If Start Scan times out, press the solid green Start Scan button to bring the system back to the ready state.
    4. Pressing Start Scan while it is flashing begins the scan.
  2. Pause Scan (j).
    1. Pressing Pause Scan causes the system to pause scanning, once the current scan is completed.
    2. Resume the scan by selecting [Resume] from the view/edit screen.
  3. Stop Scan (k).
    1. Pressing Stop Scan aborts the scan immediately.
    2. Resume the scan by selecting [Resume] from the view/edit screen.
  4. Move to Scan (l).
    1. The Move to Scan indicator flashes green indicating that the system is ready to advance the cradle into the starting position.
    2. Move to Scan will flash for 180 seconds before timing out.
    3. If Move to Scan times out, pressing the solid green Start Scan button again to bring the system back to the ready state.
    4. Pressing the Move to Scan button will advance the cradle.
  5. Stop Move (m).
    1. Pressing Stop Move stops cradle motion in/out.
    2. Resume the scan by selecting [Resume] from the view/edit screen.
  6. Remote Tilt or Prescribed Tilt (n).
    1. Pressing Prescribed Tilt and hold the button down until the prescribe tilt is achieved.
    2. The Remote Tilt button on the SCIM can be used to return the Gantry to zero once all the prescribed scans for the exam have been acquired.

4 Finalization

No finalization steps.
