RIO / NIO64 Console Cover Removal and Installation

Prerequisites

Overview

1 Side Covers

1.1 Removal Procedure

Procedure

  1. Remove the four screws at the side cover.

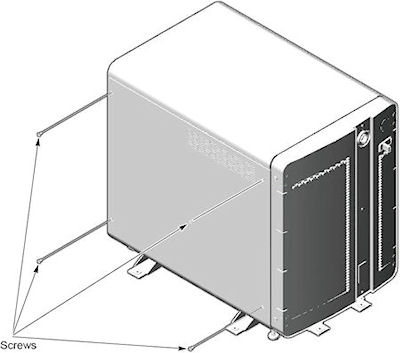

    Figure 1. 4 Screws of Side Cover

  2. Lift cover away, so that tabs disengage from bottom lip of opening.

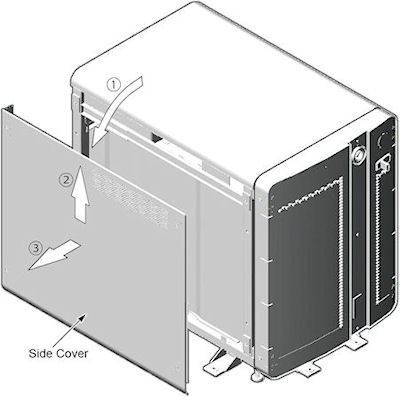

    Figure 2. Side Cover Removal

1.2 　Installation Procedure

Procedure

  1. Swing cover into position.
  2. Insert top edge of side cover into inside of top cover. The distance between side cover rear edge and chassis should be about 20mm.
  3. Move side cover forward and fix it on chassis.
  4. Tighten the four screws at the side cover.

2 Top Cover

2.1 Removal Procedure

Procedure

  1. Remove the two screws at behind of top cover.

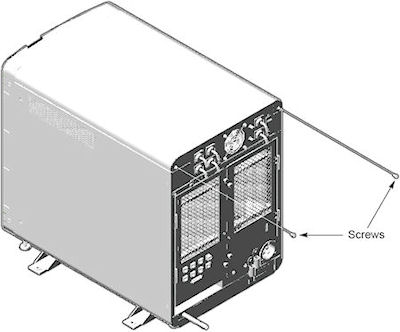

    Figure 3. 2 Screws of Top Cover

  2. Slide cover backward and lift it away.

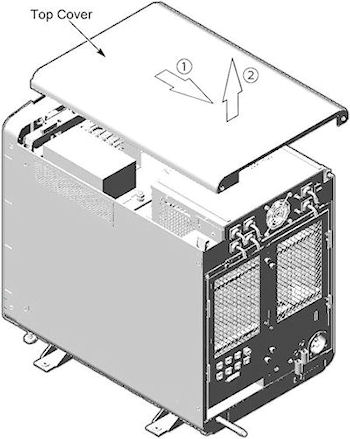

    Figure 4. Top Cover Removal

2.2 Installation Procedure

Procedure

  1. Insert two pins of top cover into the hole in the chassis.
  2. Slide cover forward and fix cover on chassis.
  3. Tighten two screws at behind of top cover

3 Front Cover

3.1 Removal Procedure

Procedure

  1. From the service desktop, shut down the system.
  2. Turn off console power.
  3. Remove four screws (two screws on each side).

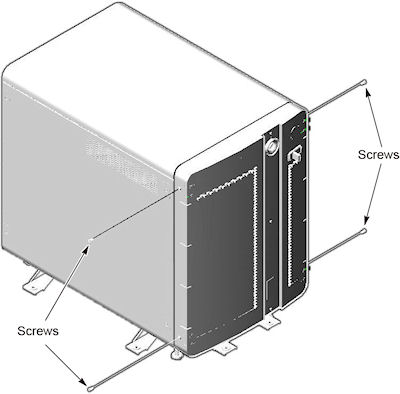

    Figure 5. 4 Screws of Top Cover

  4. Rotate bottom of cover outward and upward until it may be lifted free of the console at the top.

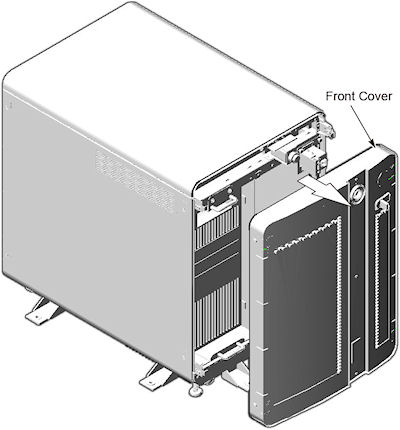

    Figure 6. Top Cover Removal

3.2 Installation Procedure

Procedure

  1. Place the front cover onto console.
  2. Tighten two screws at both side of console.

4 Finalization
