VeRB2 Troubleshooting

[Introductory material]

1 OVERVIEW

The follow information will assist in confirming if the VeRB2 Computer is experiencing a hardware fault. Although the following is not a complete set of diagnostics, it should be sufficient in determining if the VeRB2 Computer is suffering from hardware issues at the prescribe Field Replaceable Unit (FRU) level.

Figure 1. VeRB2 Computer

  • danger
  • ELECTROCUTION HAZARD
  • disconnect ac power cord from the verb2 computer before reseating or replacing components because there is power to the system board even when the verb2 computer is powered down.
  • use proper lockout / tagout procedures before replacing the components.

TO PREVENT DAMAGE TO COMPONENTS WITHIN THE VeRB2, OBSERVE THE FOLLOWING ESD PRECAUTIONS:

  • WORK ON A STATIC-FREE MAT.

  • WEAR A STATIC STRAP TO ENSURE THAT ANY ACCUMULATED ELECTROSTATIC CHARGE IS DISCHARGED FROM YOUR BODY TO GROUND.

  • CREATE A COMMON GROUND FOR THE EQUIPMENT YOU ARE WORKING ON BY CONNECTING THE STATIC-FREE MAT, STATIC STRAP AND PERIPHERAL UNITS TO THAT PIECE OF EQUIPMENT.

FOR FURTHER INFORMATION REGARDING ESD PROTECTION, REFER TO THE SAFETY CHAPTER IN THIS PUBLICATION

2 VeRB2 COMPUTER GENERAL TROUBLESHOOTING

Before proceeding with the rest of this guide, use the following checklists to find possible solutions for VeRB2 Computer problems.

2.1 Power Checklist

  • Is the VeRB2 Computer powered on?

  • Is the front panel green power light illuminated on VeRB2?

  • Has Circuit Breakers #1 or #2 (CB1 or CB2) tripped on Power Distribution Box?

  • Is the VeRB2 Computer connected to a working electrical outlet on the Power Distribution Box?

  • Has the VeRB2 PSU Switch been turned on (on back of VeRB2 chassis)?

2.2 Cable Checklist

Examine all cables for:

  • Loose connections

  • Incorrect connections

3 VeRB2 Remote Management Module (RMM)

The VeRB2 computer is equipped with a Remote Management Module (RMM), with its own dedicated Ethernet network access. The RMM is a self contained micro computer running operating and application software embedded within the firmware of the RMM card. As long as the standby power (3.3V) of the VeRB2 computer’s power supply is present, the RMM will operate and allow access from the Host Computer.

The RMM in the VeRB2 Computer provides the means for virtual presence (remote console) at the Host Computer. This presence includes keyboard, video and mouse redirection. By utilizing a RMM in the DIG Computer, an independent path for communication and hardware status checking can be established without the need of a fully functioning VeRB2 Computer.

The RMM functionality replaces the Serial over LAN (SOL) functionality used in previous console generations.

Notice Image
  • notice
  • CAUTION MUST BE OBSERVED WHEN WORKING WITH THE RMM. SETTINGS AND OPTIONS SHALL NOT BE ALTERED. ONLY ACCESS THOSE FEATURES DESCRIBE BELOW. ONLY TRAINED INDIVIDUALS SHOULD ACCESS THE RMM.

3.1 RMM Access

  1. To access the RMM, open a Terminal Window, and log on as root:

    Type: {ctuser@hostname}su – and press ENTER

    Type the root password and press ENTER

  2. Launch the Mozilla WEB Brower:

    Type: [root@hostname]mozilla and press ENTER

    The Mozilla (Fedora) WEB Browser (Figure 2) will appear.

    Figure 2. Mozilla WEB Browser

  3. In the WEB Browser URL Address Bar:

    Type: verbrmm and press ENTER

  4. The WEB Browser will update and display the Login page (Figure 3) for the VeRB2 RMM.

    Username: Type: admin and press TAB

    Password Type: password and press ENTER

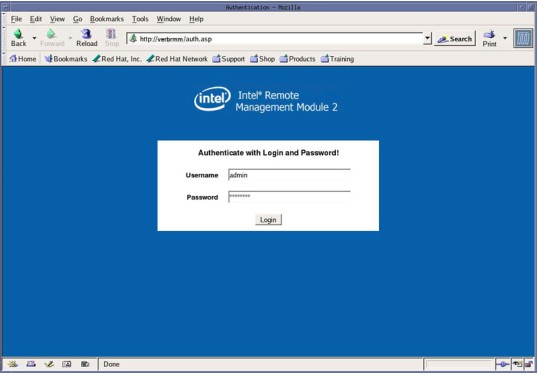

    Figure 3. VeRB2 RMM Login Page

  5. The WEB Browser will update and display the Home page (Figure 4) for the VeRB2 RMM.

    Figure 4. VeRB2 RMM Home Page

3.2 VeRB2 Computer RMM Navigation

By clicking on Console, the Remote Console Preview window, or Remote Control/KVM Console, a new window will open displaying the VeRB2 Computer’s display. In other words the VeRB2 Computer’s video will be redirected to the Host Computer’s display and displayed in the WEB Browser’s Remote Console window (Figure 5). This feature will allow the user to view the following:

  • VeRB2 Video Display – In normal operating mode

  • VeRB2 Bootup – When VeRB2 is reset independently

  • VeRB2 BIOS Settings – When F2 is pressed at start of VeRB2 bootup

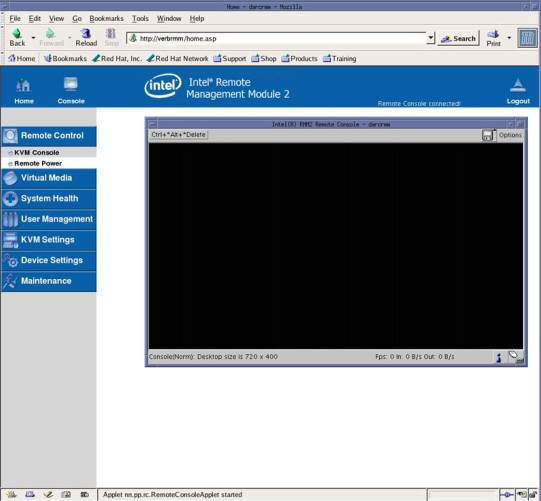

    Figure 5. VeRB2 RMM Remote Console

    By clicking on Remote Control/Remote Power, the VeRB2 Computer can be reset or power can be turned ON and OFF.

    note:

    Resetting the VeRB2 Computer or toggling power takes a few minutes to process.

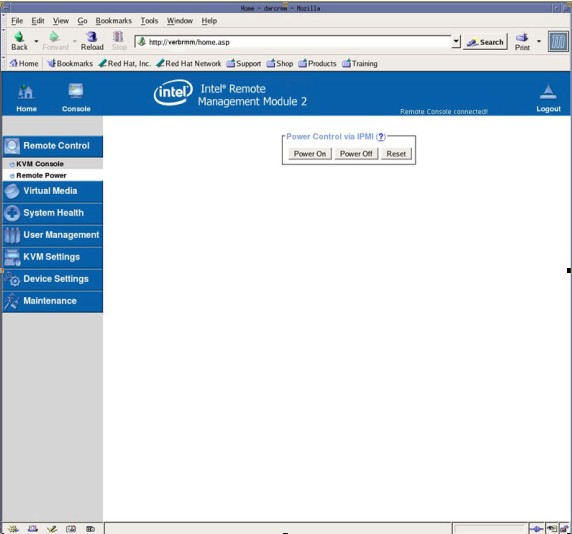

    Figure 6. VeRB2 RMM Remote Control / Remote Power

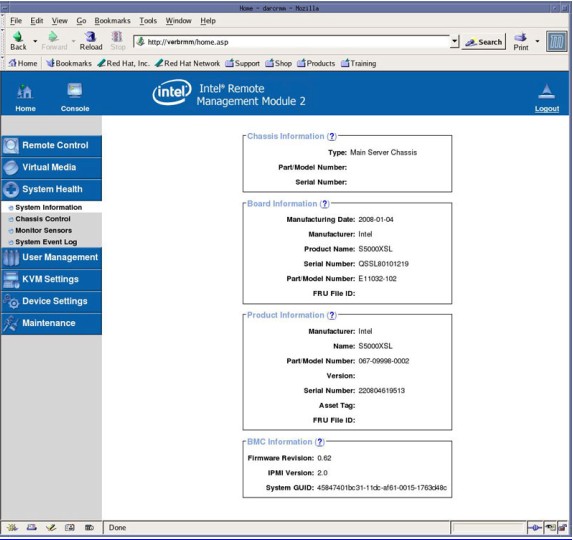

    By clicking on System Health, you can check the VeRB2 Computer’s hardware revisions. System Board information will be displayed.

    Figure 7. VeRB2 RMM System Health

    By clicking on System Health / Monitor Sensors, you can monitor the VeRB2 Computer’s IPMI sensors. This is useful for determining if hardware failures are present or operating temperatures are being exceeded.

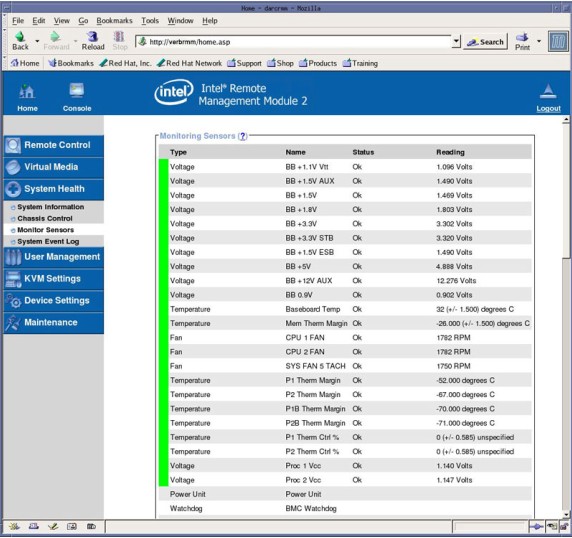

    Figure 8. VeRB2 RMM System Health / Monitor Sensors

    By clicking on System Health / System Event Log, you can view the VeRB2 Computer’s RMM event logging. This is useful for determining if hardware failures are present.

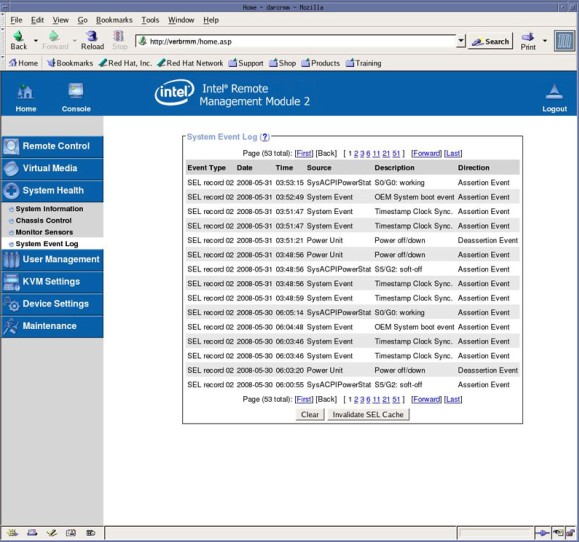

    Figure 9. VeRB2 RMM System Health / System Event Log

4 VeRB2 Computer Troubleshooting – LEDS

The VeRB2 Computer has numerous status LEDs mounted on the motherboard and chassis that can indicate hardware faults and operational status of the computer. Some of these LEDs are visible on either the front or back of the VeRB2 Computer chassis while others require that the VeRB2 Computer be removed from the console, AC power applied and chassis cover removed.

4.1 External Status LEDs

4.1.1 VeRB2 Computer Chassis Front Panel Indicators

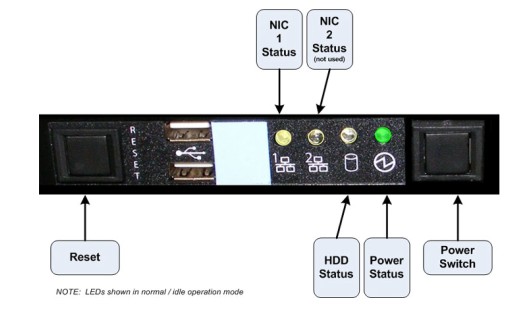

Figure 10. VeRB2 Front Panel Indicators

The Power Status LED has the following states:

  • Power Status LED has no color showing: PC is off or is in Sleep Mode (not used).

  • Solid Green: Host PC on.

The NIC LEDs have the following states:

  • NIC LED has no color showing: No connection.

  • Solid Amber: NIC is linked.

  • Blinking Amber: NIC Activity

The HDD Status LED has the following states:

  • HDD Status LED has no color showing: No HDD Activity.

  • Blinking Amber: HDD Activity.

4.1.2 VeRB2 Computer Chassis Rear Panel Indicators

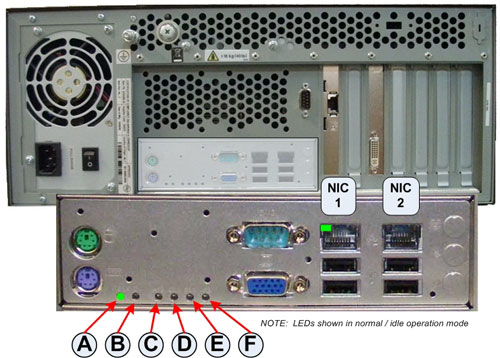

Figure 11. System Status, ID, POST and NIC LED Locations

System Status LED (A)

System ID LED (B)

System Post LEDs (C - F)

During VeRB2 Computer boot process, the BIOS executes a number of platform configuration processes, each assigned a specific hex POST code number. As each configuration routine is started, the BIOS will display the given POST code to the POST LEDs. To assist in troubleshooting a system hang during POST process, the POST LEDs can be used to identify the last POST process to be executed and the corresponding fault indications.

NIC Status LEDs

4.2 Internal Status LEDs

  • danger
  • ELECTROCUTION HAZARD
  • To see Internal Status LEDs requires the VeRB2 computer to be removed from console, Chassis Cover removed, AC power applied and VeRB2 Computer turned ON to allow POST to complete.
  • Use extreme caution for chassis will be energized.
Notice Image
  • notice
  • IN ORDER TO MEET EMC REQUIREMENTS, THE CHASSIS COVERS MUST BE PROPERLY INSTALLED AFTER SERVICING. CHECK THAT THE COVERS ARE MOUNTED FIRMLY IN PLACE AND LOCKED DOWN WHERE APPLICABLE.

4.2.1 5 Volt Standby LED (motherboard)

The VeRB2 Computer motherboard has a LED mounted towards the middle of the board that indicated that the Power Supply is under power and is supplying 5 Volt Standby power to the VeRB2 computer. As long as the VeRB2 computer is plugged into an energized AC Power source, this LED should be operational. If LED is not illuminated, suspect either a faulty PSU or motherboard in the VeRB2 Computer.

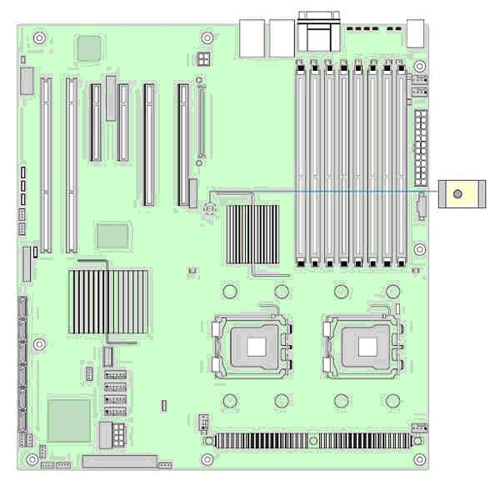

Figure 12. 5 Volt Standby Status LED Location

4.2.2 Fan Fault LEDs (motherboard)

The VeRB2 Computer motherboard has two (2) CPU Fan LEDs mounted close to the CPU Fan headers and two (2) System Chassis Fan LEDs mounted close to the rear of the motherboard, which indicated that the Fans are faulty in the VeRB2 computer.

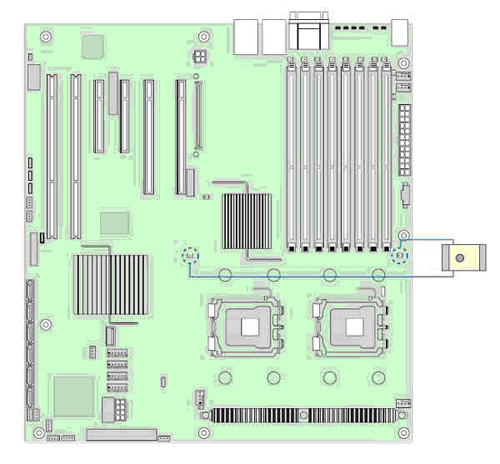

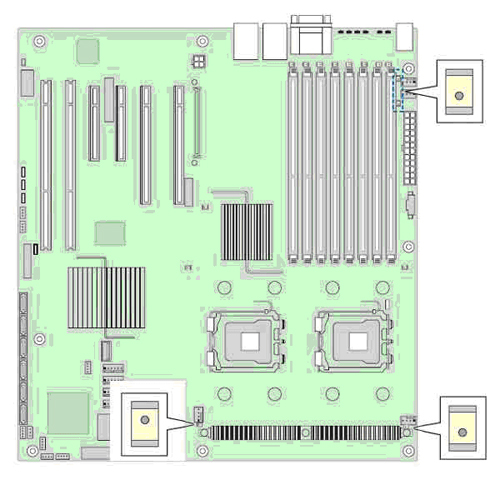

Figure 13. Fan Fault Status LED Location

4.2.3 Memory DIMM Fault LEDs (motherboard)

The VeRB2 Computer motherboard has Memory DIMM fault indicator LED associated with each DIMM Socket location. If LED is illuminated, suspect a bad memory module.

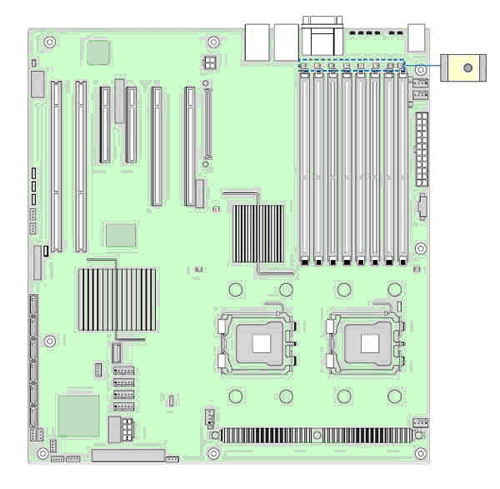

Figure 14. Memory DIMM Fault LEDs Location

4.2.4 CPU Fault LEDs (motherboard)

The VeRB2 Computer motherboard has CPU fault indicator LED associated with each CPUs. If LED is illuminated, suspect a bad processor.

Figure 15. CPU Fault LEDs Location

5 VeRB2 COMPUTER POST CODE ERRORS (VIDEO SCREEN)

Whenever possible the VeRB2 Computer BIOS will output current boot progress codes on a video screen. The codes may be reported by the system BIOS or option ROMs.

The response column in the following table is divided into two (2) types:

  • Pause: The message is displayed in the Error Manager screen, an error is logged to the System Event Log (SEL), and use input is required to continue. The user can take immediate corrective action or choose to continue.

  • Halt: The message is displayed in the Error Manager screen, an error is logged to the SEL, and the system cannot boot unless the error is resolved.
