Host Commands and Troubleshooting

The ifconfig command as run on the xw8xxx Host Computer from ctuser verifies if there is any type of active connection—but not necessarily the correct active connection. You also can check for active connections using the ping process. Look for running. Disconnect the connection to verify it is the correct connection. Do the ifconfig command to make sure it is not Running. Reconnect the cable. Remember that ‘running’ is a moment in time and does not mean the connection is still active for the next moment in time. There could be an intermittent issue, or the connector is not fully clicked in place.

Example

Open a Unix Shell as ctuser and type {ctuser@ hostname }  ifconfig

Eth0 is the HOST to DARC connection - port “C” (could be 169 subnet if Site IP is 172.16.0.x)
eth0      Link encap:Ethernet  HWaddr 00:04:23:AD:B1:36
PortC    inet addr:172.16.0.1  Bcast:172.16.0.255  Mask:255.255.255.0
          inet6 addr: fe80::204:23ff:fead:b136/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1

          RX packets:633021 errors:0 dropped:0 overruns:0 frame:0
          TX packets:415771 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:467396451 (445.7 Mb)  TX bytes:37262665 (35.5 Mb)
          Base address:0x6000 Memory:dbf80000-dbfa0000

Eth1 is the Gantry TGP connection - port “D”
eth1      Link encap:Ethernet  HWaddr 00:04:23:AD:B1:37
PortD   inet addr:192.9.220.1  Bcast:192.9.220.255  Mask:255.255.255.0
          inet6 addr: fe80::204:23ff:fead:b137/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:150523 errors:0 dropped:0 overruns:0 frame:0
          TX packets:151295 errors:0 dropped:0 overruns:0 carrier:0
          collisions:2905 txqueuelen:1000
          RX bytes:20372243 (19.4 Mb)  TX bytes:19661489 (18.7 Mb)
          Base address:0x6040 Memory:dbfa0000-dbfc0000

Eth2 is the Hospital backbone- port “A” (cannot be 172.16.0.x unless DARC is changed)
eth2      Link encap:Ethernet  HWaddr 00:04:23:AD:A8:46
PortA   inet addr:3.57.255.56  Bcast:3.57.255.255  Mask:255.255.252.0
          inet6 addr: fe80::204:23ff:fead:a846/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:405810 errors:0 dropped:0 overruns:0 frame:0
          TX packets:132895 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:75616972 (72.1 Mb)  TX bytes:132493964 (126.3 Mb)
          Base address:0x4000 Memory:db180000-db1a0000

Eth3 is the Gantry STC connection - port “B”
eth3 Link encap:Ethernet  HWaddr 00:07:E9:0D:06:DD
HOST inet addr:192.9.220.1  Bcast:192.9.220.255  Mask:255.255.255.0
PortB UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
STC RX packets:6047 errors:0 dropped:0 overruns:0 frame:0
TX packets:6022 errors:0 dropped:0 overruns:0 carrier:0
collisions:10 txqueuelen:100
RX bytes:801454 (782.6 Kb)  TX bytes:846248 (826.4 Kb)
Interrupt:25 Base address:0x28c0 Memory:da1a0000-0

Eth4 AW/Host Main Connection – orange on Host rear
eth4      Link encap:Ethernet  HWaddr 00:11:85:AE:36:CE
          inet addr:10.44.22.20  Bcast:10.44.22.255  Mask:255.255.255.0
          inet6 addr: fe80::211:85ff:feae:36ce/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:9 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 b)  TX bytes:654 (654.0 b)
          Base address:0x3000 Memory:d8100000-d8120000
Under Unix/Linux this is the local device that is the local system (Software pseudo device)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:16436  Metric:1
          RX packets:218042 errors:0 dropped:0 overruns:0 frame:0
          TX packets:218042 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
RX bytes:28403818 (27.0 Mb)  TX bytes:28403818 (27.0 Mb)



Table 1 shows the Host Computer Ethernet NIC Port Labeling/Connection for ALL VCT SITES. The Ethernet naming assignments differ between the xw8000 and xw8200/xw8400, but cable connections remain the same.

Table 2 shows the Host Computer Ethernet naming Scheme for HOST Types.

You may use the ethtool command on the HOST, VDARC, and VIG Nodes to verify that the NIC is active. If the Connection (NIC or Cabling) is lost, the command is active until repower, or until the connection is good and the Control+C command is properly invoked and seen by the subsystem.

(For GOC3/4/5 LightSpeed Operator Consoles) HP HOST Computers (xw8000, xw8200, and xw8400) may have the incorrect BIOS Version loaded at sites. Additionally, Host Computers from GPO may be shipped with the incorrect BIOS. When the incorrect BIOS version (old version: 1.05 or 1.07) is installed on the HOST, the most common failure mode is an extremely slow OS software load. The load time for the OS should take a maximum of 20 minutes or as stated in the LFC procedure.

Image recon may fail and/or shutdown. Select Recon Management, select Pause queue, Restart queue. If this does not restart recon, then you may need a halt and power off/on of the console.

{ctuser@hostname} rsh darc
Last login: Tue Nov 16 10:16:14 from oc
[ctuser@darc]$ su -
Password: <password>
[root@darc ~]# cd /usr/g/bin
[root@darc bin]# ls
cleanq        get_recon_files      print_timers       sdiomgr               start_sdda
cupMonitor    GRE_SOURCE           ptimers            showprods             testHighSpeed
cupShutdown   GRE_START            rawvalid           slay                  timecore-lnx
dataacq       GRE_STOP             read_isr           slay_recon_processes  what

data_restore  image_buffer         recon_control      socketusers           write-bench
DipDiag       image_generation     recon_dump_timers  ssClient
doRhard.ex    inject_recon_errors  RotateResumeData   start_darc_proc
[root@darc bin]# cleanq
cleanq: Command not found.

[root@darc bin]# ./cleanq



WARNING: This deletes all image queue files for images that have not been installed yet. If you continue, these files are not recoverable.

Do you wish to continue? [y/n]: y
deleting 0 files in /usr/g/queue/priority0_jobs
deleting 0 files in /usr/g/queue/priority1_jobs
deleting 0 files in /usr/g/queue/priority2_jobs
deleting 0 files in /usr/g/queue/priority3_jobs
deleting 0 files in /usr/g/queue/priority4_jobs
deleting 0 files in /usr/g/queue/prospective
deleted 0 files total
[root@darc bin]#



This check displays your current type of NVIDIA Card in the HOST and its BIOS. Your output may be different.

{ctuser@hostname} cat /proc/driver/nvidia/cards/*
Model:           Quadro FX 1400
IRQ:             16
Video BIOS:      05.41.02.43.03　　<-- RoHS Graphic Card
Card Type:       PCI



{ctuser@hostname} hinv (8000 OUTPUT SHOWN – NOT 8200/8400)
CPU: GenuineIntel Intel(R) Xeon(TM) CPU 2.66GHz
4 2658 MHz i686 Processors
Secondary cache: 512 KB
FPU: GenuineIntel Intel(R) Xeon(TM) CPU 2.66GHz Floating Point
Main memory size: 4096 Mbytes Standard Memory Size
SCSI controller 1: Version aic7xxx
SCSI controller 0: Version aic7xxx
  Disk drive: unit 03 on SCSI controller 0, Lun 00 SCSI Tower Sony MOD Drive
  Disk drive: unit 04 on SCSI controller 0, Lun 00 SCSI Tower DVD-RAM Drive
IDE controller 1: PCI
  CDROM: unit c on IDE controller 1 Host Computer Internal Drive
Graphics board: VGA
Ethernet interface configured: eth0 Hospital BackBone Port A
Ethernet interface configured: eth1 TBL/STC Port B
Ethernet interface configured: eth2 HOST – DARC Port C
Ethernet interface configured: eth3 Gantry TGP Port D
Ethernet interface configured: eth4 AW/Host Main Connection port 8 Gbe Switch



[root@hostname]# hinv (8200/8400 OUTPUT SHOWN – NOT 8000)
CPU: GenuineIntel Intel(R) Xeon(TM) CPU 3.20GHz
4 3202 MHz i686 Processors
  Secondary cache: 1024 KB
FPU: GenuineIntel Intel(R) Xeon(TM) CPU 3.20GHz Floating Point
Main memory size: 4096 Mbytes Standard Memory Size
SCSI controller 3: Version aic7xxx
SCSI controller 2: Version aic7xxx
  Disk drive: unit 03 on SCSI controller 2, Lun 00 SCSI Tower Sony MOD Drive
  Disk drive: unit 04 on SCSI controller 2, Lun 00 SCSI Tower DVD-RAM Drive
IDE controller 1: PCI
  CDROM Device: unit c on IDE controller 1 Host DVD Internal Drive
16550A UART serial port: 000003F8
Graphics board: VGA
Ethernet interface configured: eth0 HOST – DARC Port C
Ethernet interface configured: eth1 Gantry TGP Port D
Ethernet interface configured: eth2 Hospital BackBone Port A
Ethernet interface configured: eth3 TBL/STC Port B
Ethernet interface configured: eth4 AW/Host Main Connection port 8 Gbe Switch
Dual Channel Display




[root@hostname]# free –m (use hinv for Main Memory Stick info)
             total       used       free     shared    buffers     cached
Mem:          4052        361       3691          0         24        223
-/+ buffers/cache:        113       3938
Swap:         7930          0       7930
[root@ hostname] or ctuser: free
             total       used       free     shared    buffers     cached
Mem:       3888228    1839660    2048568          0      81112     425888
-/+ buffers/cache:    1332660    2555568
Swap:      8120724          0    8120724



[root@hostname]# cat /usr/g/config/recon_hardware.cfg
Overview: This command displays the number of IG Nodes present on the system and the type of Recon Hardware.
# The type of recon hardware that is installed on this
# console.
# Valid values: "Pegasus" or "GRE"
# type = string.
reconHardware = GRE

# Number of IG nodes
num_ig_node = 3

[root@hostname]# grep gantryType /usr/g/config/scanhardware.cfg
        gantryType = GANTRY_VCT_40



[root@hostname]# cat /proc/cpuinfo | grep processor
processor       : 0
processor       : 1
processor       : 2
processor       : 3



{ctuser@hostname} grep MH /proc/cpuinfo
xw8400:
cpu MHz : 1995.004
cpu MHz : 1995.004
cpu MHz : 1995.004
cpu MHz : 1995.004

xw8200:
cpu MHz : 3202.157
cpu MHz : 3202.157
cpu MHz : 3202.157
cpu MHz : 3202.157

xw8000:
cpu MHz : 2658.406
cpu MHz : 2658.406
cpu MHz : 2658.406
cpu MHz : 2658.406



There are two listings for SCSISTAT as there are several ALTERNATE drives available in product. Every alternate SCSI Device is not listed here.

The examples below are for a CT system. A PET system, has:

• 4 direct-access devices

• 1 optical device

• 2 CD-ROMs

[root@hostname]# cat /proc/scsi/scsi
Attached devices:
Host: scsi0 Channel: 00 Id: 00 Lun: 00
  Vendor: FUJITSU  Model: MAU3073NP        Rev: HPF4
  Type:   Direct-Access                    ANSI SCSI revision: 03
Host: scsi1 Channel: 00 Id: 01 Lun: 00
  Vendor: FUJITSU  Model: MAU3073NP        Rev: HPF4
  Type:   Direct-Access                    ANSI SCSI revision: 03
Host: scsi1 Channel: 00 Id: 02 Lun: 00
  Vendor: FUJITSU  Model: MAU3073NP        Rev: HPF4
  Type:   Direct-Access                    ANSI SCSI revision: 03
Host: scsi2 Channel: 00 Id: 03 Lun: 00
  Vendor: SONY     Model: SMO-F551-SD      Rev: 1.04
  Type:   Optical Device                   ANSI SCSI revision: 02
Host: scsi2 Channel: 00 Id: 04 Lun: 00
  Vendor: MATSHITA Model: DVD-RAM SW-9572  Rev: F100
Type:   CD-ROM                           ANSI SCSI revision: 02

[root@hostname cat /proc/scsi/scsi
Attached devices:
Host: scsi0 Channel: 00 Id: 00 Lun: 00
  Vendor: MAXTOR   Model: ATLAS15K2_73WLS  Rev: HPM1
  Type:   Direct-Access                    ANSI SCSI revision: 03
Host: scsi1 Channel: 00 Id: 01 Lun: 00
  Vendor: FUJITSU  Model: MAS3735NP        Rev: HPF2
  Type:   Direct-Access                    ANSI SCSI revision: 03
Host: scsi1 Channel: 00 Id: 02 Lun: 00
  Vendor: FUJITSU  Model: MAS3735NP        Rev: HPF2
  Type:   Direct-Access                    ANSI SCSI revision: 03
Host: scsi2 Channel: 00 Id: 03 Lun: 00
  Vendor: SONY     Model: SMO-F551-SD      Rev: 1.04
  Type:   Optical Device                   ANSI SCSI revision: 02
Host: scsi2 Channel: 00 Id: 04 Lun: 00
  Vendor: MATSHITA Model: DVD-RAM SW-9572  Rev: F100
  Type:   CD-ROM                           ANSI SCSI revision: 02


[root@hostname]# scsistat
Device 0 00    Direct-Access   FUJITSU MAU3073NP FW Rev: HPF4 OS Drive
Device 1 01    Direct-Access   FUJITSU MAU3073NP FW Rev: HPF4 Image Drive #1
Device 1 02    Direct-Access   FUJITSU MAU3073NP FW Rev: HPF4 Image Drive #2
Device 2 03    Optical Device  SONY SMO-F551-SD FW Rev: 1.04 MOD Drive
Device 2 04    CD-ROM  MATSHITA        DVD-RAM SW-9572 FW Rev: F100 DVD Drive

{ctuser@hostname}: scsistat (other Drives that could be listed)
Direct-Access   SEAGATE ST373453LW FW Rev: 0006 OS Drive
Direct-Access   SEAGATE ST373453LW FW Rev: HPS3 Image Drive #1
Direct-Access   SEAGATE ST373453LW FW Rev: HPS3 Image Drive #2

[root@hostname]# scsistat
Device 0 00    Direct-Access   MAXTOR  ATLAS15K2_73WLS FW Rev: HPM1
Device 1 01    Direct-Access   FUJITSU MAS3735NP FW Rev: HPF2
Device 1 02    Direct-Access   FUJITSU MAS3735NP FW Rev: HPF2
Device 2 03    Optical Device  SONY SMO-F551-SD FW Rev: 1.04
Device 2 04    CD-ROM  MATSHITA        DVD-RAM SW-9572 FW Rev: F100



List Software Version, Tube Type, Gantry Type, and Host information (hyperthreading enabled, speed, memory seen) using check_config. Use the other commands listed to display the OS or additional information. The main differences are HOST processor speed (xw8400 vs xw8200 vs xw8000).

[root@hostname]# check_config
Product: LightSpeed VCT
sw_version: vct_hp.53
sw_hw_string: vct_hp.53.V40_H_V64_G_GTL
machine_type: Intel
host_id: 665694518
tube_type: 16
gantry_type: GANTRY_VCT_40
No. of processors: 4
Processor speed: 3202
memory: 4096
[root@hostname]# check_config
Product: LightSpeed VCT
sw_version: merge_wf_rh9.55_vct
sw_hw_string: merge_wf_rh9.55_vct.V40_H_V64_G_GTL
machine_type: Intel
host_id: 40708776
tube_type: 16
gantry_type: GANTRY_VCT_40
No. of processors: 4
Processor speed: 2658
memory: 4096

[root@hostname]# cat /GE (then select Tab key, then Enter key on keyboard)
{ctuser@bay56}[7] cat /GEHC_cdrom_rev.4.3.16
Release: GEHC/CTT Linux 4.3.16
Built: Tue Jul 12 12:29:10 CDT 2005

{ctuser@@hostname} showprods | grep Helios_OC_Product
I Helios_OC_Product     01/13/2006    LightSpeed ver vct_hp rel vct_hp.53

{ctuser@@hostname} rpm -q -a | grep Helios
Helios_CLASSMOC_Product-vct_hp-53
Helios_GRE_OC_Product-vct_hp-53
Helios_H2_PEGASUS_CLASSC_Product-vct_hp-53
Helios_i18n_Product-vct_hp-53
Helios_H2_O2LESS_OC_Product-vct_hp-53
Helios_VCT_Product-vct_hp-53
Helios_CLASSC_Product-vct_hp-53
Helios_VCT_CLASSC_Product-vct_hp-53
Helios_H2_O2LESS_i18n_OC_Product-vct_hp-53
Helios_H2_O2LESS_CLASSC_Product-vct_hp-53
Helios_OC_Product-vct_hp-53
[root@hostname]# swhwinfo (or swhwinfo –all)
vct_hp.53.V40_H_V64_G_GTL

swhwinfo will have the following new switches available with the VCT M4 and PF 1.5 M3 software release:

-c or -classc = Outputs the Class C version, if installed, on the system.
-m or -classm = Outputs the Class M version, if installed, on the system.
-o or -os = Outputs the Operating System version installed on the system.
-da or -date = Outputs the date and time the software was installed on the system (LFC).

The help utility (available by -h or -help) has complete details about all the available switches.

[root@hostname]# uname -a
Linux bay56 2.6.7-2.2smp #1 SMP Mon Jul 11 16:48:43 CDT 2005 i686 i686 i386 GNU/Linux



When Application Software is shutdown or has not started, the Host Computer pwho command should return with NOT RUNNING. When Application Software is up and running properly, the processes should all be RUNNING. You can do this as ctuser or root.

The Telnet process from HOST to DARC is not successful without the dpcproxy server running. The first command listed below provides an output if the server is running. The second command is the restart command, which informs the user of the running or restarted status. Another great T/S tool is the ethtool: visit this info when T/S. Load the SOL CD into the DARC if telnet still fails and your DARC Subnet is not set to 169.

[root@hostname]# ps -leaf | grep -v grep | grep dpcproxy
root      2580     1  0 Apr27 ?        00:00:00 /usr/local/cli/dpcproxy
**************** the dpcproxy server displayed above is running. ****************
[root@hostname]# service cliservice start
****************dpcproxy is shown as already running or retarted. ****************

“The dpcproxy is running”



This command displays the addresses and all the names each address is known as.

{ctuser@hostname}: cd /etc
{ctuser@ hostname }: more hosts
# Do not remove the following line, or various programs
# that require network functionality will fail.
127.0.0.1         localhost.localdomain localhost

xx.xxx.xx.xx system name
192.9.220.1 Gantry information   (example: ct56_oc CT56_oc0
CT56_OC0 oc OC CT56_sbcCT56_sbc0 CT56_SBC0 sbc SBC SBCdLAN)
172.16.0.2 darc ice ICE
192.9.220.12 ice-sm-gate
192.9.220.13 ice-post
192.9.220.14 ice-sigmab
192.9.220.1 sbcorig
192.9.224.2 OBCR obcr
192.9.224.201 ORP orp
192.9.220.2 TGP tgp STC stc
192.9.220.4 ETC etc
192.9.220.20 sarb
192.9.220.21 sarb-ice



[root@ hostname]# sfdisk –l

Disk /dev/md0: 35840896 cylinders, 2 heads, 4 sectors/track

sfdisk: ERROR: sector 0 does not have an msdos signature
/dev/md0: unrecognized partition
No partitions found

Disk /dev/sda: 8924 cylinders, 255 heads, 63 sectors/track
Units = cylinders of 8225280 bytes, blocks of 1024 bytes, counting from 0

   Device Boot Start     End   #cyls    #blocks   Id  System
/dev/sda1   *      0+     12      13-    104391   83  Linux
/dev/sda2         13     534     522    4192965   83  Linux
/dev/sda3        535     795     261    2096482+  82  Linux swap
/dev/sda4        796    8923    8128   65288160    5  Extended
/dev/sda5        796+    804       9-     72261   83  Linux
/dev/sda6        805+   1054     250-   2008093+  82  Linux swap
/dev/sda7       1055+   1304     250-   2008093+  82  Linux swap
/dev/sda8       1305+   1554     250-   2008093+  82  Linux swap
/dev/sda9       1555+   2771    1217-   9775521   83  Linux
/dev/sda10      2772+   4231    1460-  11727418+  83  Linux
/dev/sda11      4232+   8923    4692-  37688458+  83  Linux
Warning: start=63 - this looks like a partition rather than
the entire disk. Using fdisk on it is probably meaningless.
[Use the --force option if you really want this]

[root@ hostname]# df –h
Filesystem            Size  Used Avail Use% Mounted on
/dev/sda2             4.0G  3.1G  958M  77% /
/dev/sda1              99M  5.9M   88M   7% /boot
none                  2.0G     0  2.0G   0% /dev/shm
/dev/sda9             9.4G  272K  9.4G   1% /usr/interchange
/dev/sda10             12G  792K   12G   1% /data
/dev/sda11             36G  8.0G   28G  23% /usr/g
/dev/md0              137G  140M  137G   1% /usr/g/sdc_image_pool
/dev/fd0              1.4M   21K  1.4M   2% /mnt/floppy



[root@ hostname]# service network
Usage: /etc/init.d/network {start|stop|restart|reload|status}

[root@ hostname]# cat /etc/sysconfig/network-scripts/ifcfg-eth0
DEVICE=eth0
ONBOOT=yes
BOOTPROTO=static
IPADDR=172.16.0.1
NETMASK=255.255.255.0

[root@ hostname]# cat /etc/sysconfig/network-scripts/ifcfg-eth2
DEVICE=eth2
ONBOOT=yes
BOOTPROTO=static
IPADDR=3.57.255.56
NETMASK=255.255.252.0
GATEWAY=3.57.252.254

[root@ hostname]# cat /etc/sysconfig/network
NETWORKING=yes
HOSTNAME=liblab10
GATEWAY=3.231.15.254
GATEWAYDEV=eth0
FORWARD_IPV4=yes
NISDOMAIN=CTSYSTEMS



USB devices—such as the Service Adaptor to Service Key, and the Trackball and their associated interconnect paths—must be recognized by the HOST during power-on boot-up for successful operation with Application software. After determining a failure, always perform a halt from root or Shutdown and then re-power the Operator Console to enable the USB device.

With Apps up or down you can plug a USB device into any port available on the front or rear of the Host Computer to determine if there is a bad:

• Specific Host Port at rear of Operator Console

• Trackball

• Interconnect cable at rear of Operator Console

• USB Feed-through for the Trackball at rear of Operator Console

• USB Adaptor (for the Service Key located behind the Service Key Panel)

• Interconnect cable from rear of Operator Console to USB Adaptor

Two Unix Shells are opened and the user is required to be root on the host for each. Two sets of commands are utilized to determine if a Host recognized the device and its path. The /var/log/messages act as a real-time output log to determine device status. Thelsusbcommand determines if the device information returned is healthy. During our initial test troubleshooting, we experienced an intermittent trackball with output from the lsusb command was present, but the information was incomplete at times, missing at times, and had dashes or question marks shown. Viewing the /var/log/messages may have assisted us at that time and thus it has been added here.

{ctuser@hostname} su - <Enter>
Password: <Enter>
[root@hostname]# lsusb –d0x----: -v (where ---- is the device)
[root@hostname]# tail –f /var/log/messages <Enter>

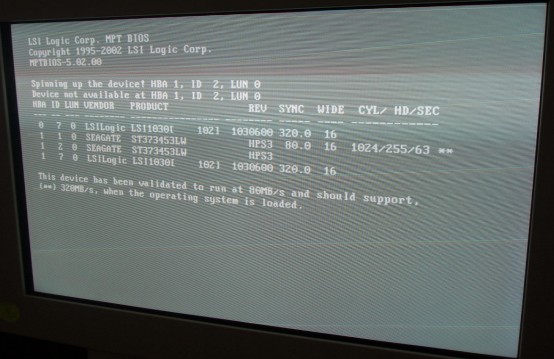

Reboot your Console to check if the OS and two Image Disks are seen and come up without error. Screen shots are shown for VCT xw8000 and xw8200 HOST Types.

Currently, the xw8200/xw8400 Host with BIOS version 2.10 or later does not usually display automatically. In this case, at the HP Splash Screen, select any key to invoke the drive display. Once the Device Display is present, you can also use the Pause/Break key to freeze the window so you can really look it over.

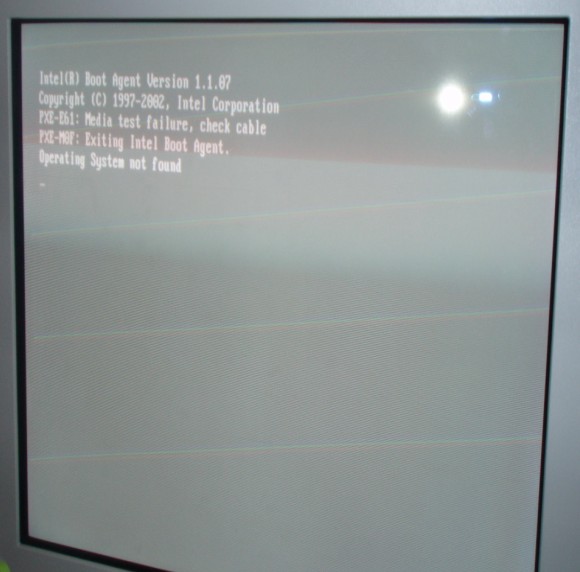

At the most basic level, you are looking for all three drives and no errors coming up. This is the initial indicator that something is wrong with your Host. Examples are shown below for reference of good and failing screens. Current production drives are Seagate, Hewlett Packard, and Fujitsu.

[root@hostname]# dd if=/dev/zero of=/usr/g/sdc_image_pool/test count=1024


This command lets you know if the First Image Disk is seen/present in the HOST and responding. It does not tell you whether the Image Disks or associated SCSI cable/motherboard are bad. You need to reboot and watch the Disk Drives after the HP Splash Screen to see the bad one.

Good Output:

1024+0 records in
1024+0 records out



Bad Output:

dd: opening `/usr/g/sdc_image_pool/test`
Input/Output error



The procedure to load the 1.13 HP BIOS may be a little confusing. To turn into the load procedure, just add in the floppy insertion after Step 1.

Checking HP xw8000 Motherboard BIOS Settings with 4GB Memory

1. Verify correct Setup values of BIOS 1.13 on the xw8000.

   note:

   If the HP BIOS is not at the correct BIOS Version, the OS load on the HP will take a very long time.

2. Turn on the HP Host Computer.

3. During the initial HP Splash Screen, press F2 to enter the Setup.

4. Select the following using the arrow keys, Esc, Enter, and +/- or as noted on the screen:

   1. Main

      • BIOS Version: JQ.W1.13US (if 1.13 is not present load BIOS via floppy)

      • Installed O/S: [Other/NT/Linux]

      • Legacy USB Support: [Disabled]

   2. Advanced

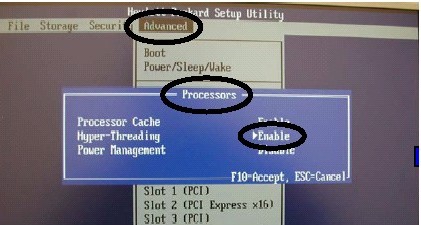

      • Processors: Hyper-Threading [Enabled]

      • AGP Slot (Graphics): Enable Master: [Enabled] Graphics Aperature: [128Mb]

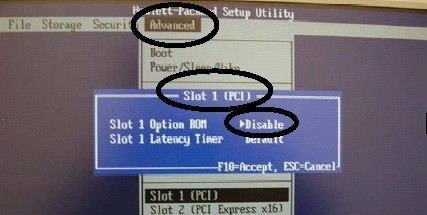

      • PCI Slot 1 (32-bit): Option ROM Scan: [Disabled]

      • PCI Slot 2 (32-bit): Option ROM Scan: [Disabled]

      • PCI Slot 3 (PCI-X 133): Option ROM Scan: [Disabled]

      • PCI Slot 4 (PCI-X 100): Option ROM Scan: [Disabled]

      • PCI Slot 5 (PCI-X 100): Option ROM Scan: [Disabled]

   3. Power

      • Remote Power-On: [Disabled]

      • After Power Failure: [Power On]

   4. Boot

      • QuickBoot Mode: [Enabled]

      • Display OPROM Message: [Enabled]

      • Default Primary Video Adapter: [AGP]

   5. Boot Device Priority

      • Legacy Floppy Drives

      • CD-ROM Drive

      • Hard Drives

        - #28 ID00 LUN0 SEAGATE ST373453LW

        - !   #29 ID01 LUN0 SEAGATE ST373453LW (perform Shift 1 sequence)

        - !   #29 ID02 LUN0 SEAGATE ST373453LW (perform Shift 1 sequence)

        - !   Bootable Add-In Cards (perform Shift 1 sequence)

        - !   Network Boot (perform Shift 1 sequence)

        - !   IBA 1.1.07 Slot 0518 (perform Shift 1 sequence)

        - !   39160 SCSI CD-ROM Drive (perform Shift 1 sequence)

      note:

      After the 1.13 load and change acceptance, we are no longer seeing the above line (item vii). It used to be when loaded, but seems to disappear. This is normal.

   6. Exit

      • Exit Saving Changes

      • Yes

Loading the HP BIOS sets up the LSI BIOS and the System default BIOS for the HP Host Computer. You need to manually set changes specified by GEHC “from default”. Two sections are discussed for the xw8200/xw8400 HP Host Computer (4 Gbyte Memory ONLY)

For the xw8200 Host Computer version ONLY, verify correct bios version and setup values of BIOS v02.10. This does not apply to the HP8000 Host Computer.

1. Turn on the HP 8200 Host Computer.

   note:

   Verify that the BIOS Version is v02.10 located at the left-bottom of the Initialization Screen.

2. Press any key at the HP Splash Screen to continue.

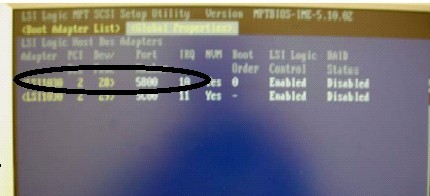

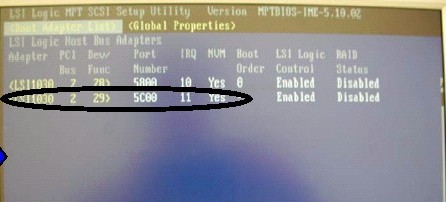

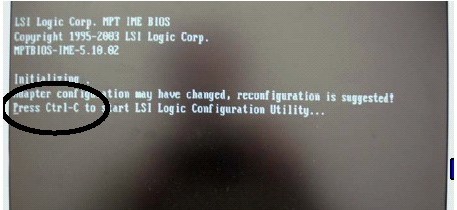

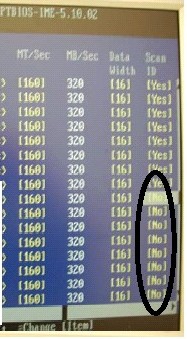

3. At the Initialization screen, press Ctrl+C to start the LSI Logic Configuration Utility.

4. On the LSI Logic SCSI Setup Utility Main Menu, select F2 to highlight the Main Selections.

5. Press the right arrow key to highlight Global Properties, then press Enter.

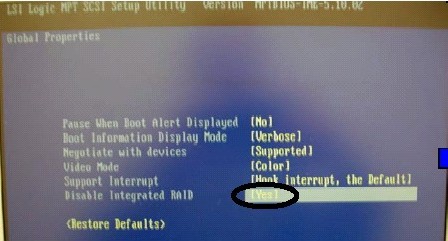

6. For Global Properties, navigate via the down-arrow key to Disable Integrated Raid and select the following per screen instructions:

   • Pause When Boot Alert Displayed No

   • Boot Information Display Mode Verbose

   • Negotiate with devices Supported

   • Video Mode Color

   • Support Interrupt Hook interrupt, the Default

   • Disable Integrated RAID Yes

   • (Restore Defaults)

   • Select Esc

7. With the Global Properties tab highlighted, use the arrow key if necessary to select the first SCSI Channel 0 (Boot Order 0), then press Enter.

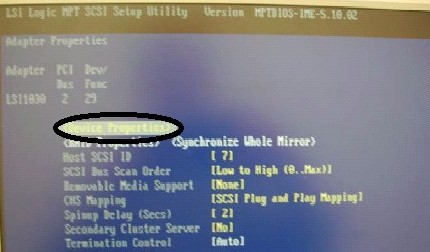

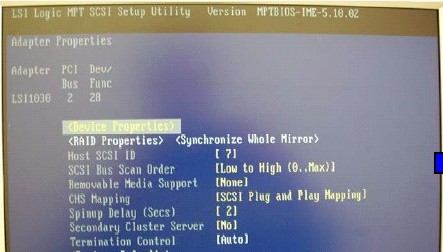

8. Press Enter at Device Properties.

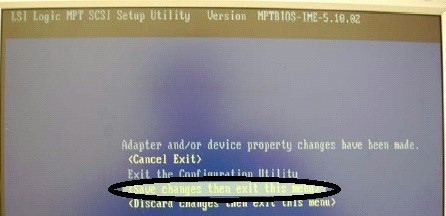

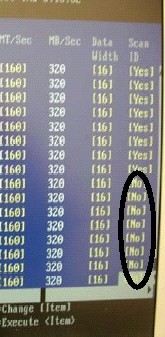

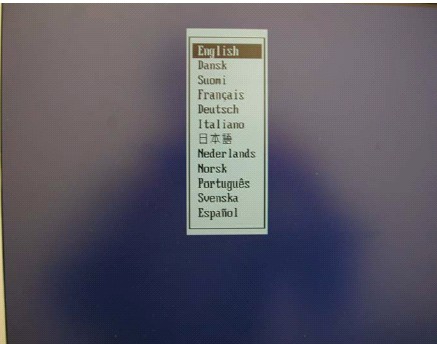

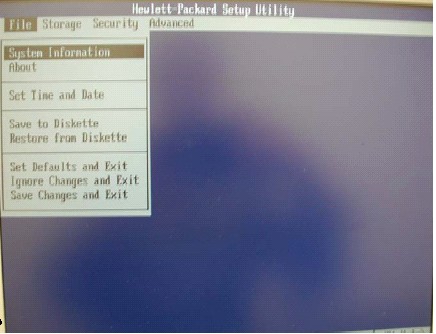

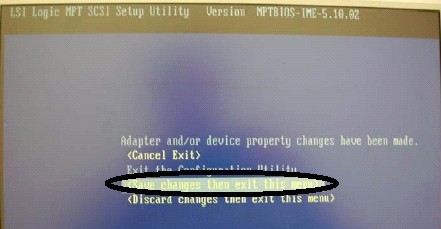

1. For English (or the language you prefer), press Enter.

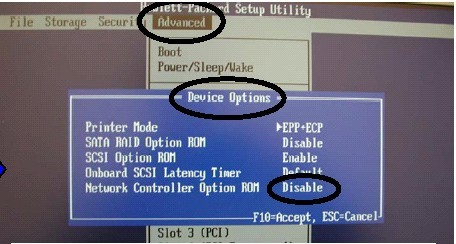

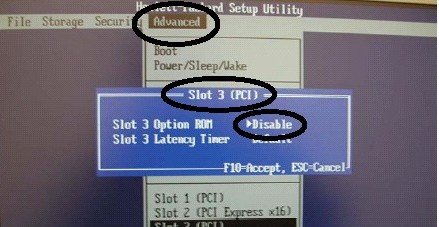

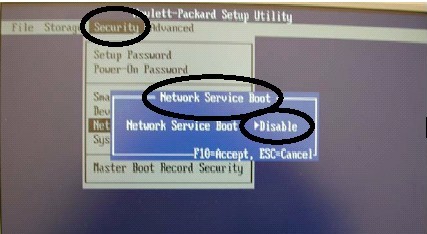

2. Use the arrow keys to navigate to the Security selection.
