X-Ray On Indicators, Warning Labels, and Product Locator Cards

1 CT System X-Ray ON Indicators, Cautions & Warning Labels

1.1 Check And Install System Warning Labels

All labels are installed in English and present on PDU, Console, Table, Gantry and Accessories. Add the labels listed below (Table 1 and Check Warning Labels) for the appropriate language for the country in which this system is installed. Additionally, apply any other warning labels if present, on equipment where appropriate.

notice

Important: Do not cover English labels already on the system.

Table 1. System Warning Labels
Subsystem	Component	Label(s)
Console	SCIM	Language overlay label X-ray warning label
Console	Keyboard	Function key overlay label Keyboard ERGO Warning (GOC6 Series Only)
Gantry	Scan Window	Laser warning label
	Laser Window	Laser warning label
	Front Cover	Laser warning label Information labels
	System GIB	System Global Installation Base (rating) label
Table (1700)	Front Side Cover	Pinch Hazard warning label - each side of cover
	Rear Side Cover	Pinch Hazard warning label - each side of cover
	Back Cradle Pan	Pinch Hazard warning label - each side of cover
Table (2000)	Front Side Cover	Pinch hazard warning label - each side of cover
Table (2000)	Back Cradle Pan	Pinch hazard warning label - each side of cover
NGPDU	Front Cover	Emergency OFF label Gantry Enable label Power ON label
Accessories	Table Foot Extender	Warning label
	Coronal Head Holder	Warning label
	Sagittal Head Holder	Warning label
	Accessory Tray	Warning label
	IV Pole	Caution label

1.2 Documentation - Verification

When finished update GE Form e4879 and the installation completion form that all appropriate language labels were installed and present.

2 Check Warning Labels

The labels on the system and the system manuals must comply with the country law, as listed in Direction 5221102-1EN (found in the language collector kit shipped with the system) regardless of the user interface (UI) language that is chosen. Compliance to the law must be completed prior to releasing the system to the customer.

2.1 On SCIM

Make sure the X-Ray warning label appears in the correct location on the SCIM.
Record this information on GE Form e4879 located on the Service CD.

2.2 On Gantry

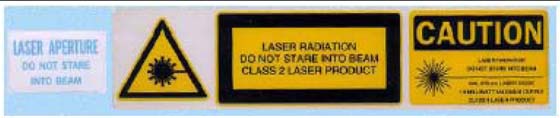

Check that all laser warning labels are present on the gantry near the laser opening.
There should also be warning labels on the lower right side of the gantry front cover.
Record this information on GE Form e4879 located on the Service CD.

2.3 On Laser

Make sure all laser warning labels appear in the correct location on the outside of the gantry.
Obtain and install replacements for any missing labels

3 Process Product Locator Cards

Collect the product locator cards shipped with the system. There should be approximately 28 product locator cards with the average system.
Update the online product locator web site with the required hospital information.
Confirm that the serial numbers on the cards shipped with the system match those found on the web site for that GON number. Update the information, as required.
Place the cards in a plastic bag, then place them in the service cabinet.

4 Check X-Ray Lights

Perform several scans following the steps below. Verify that the x-ray ON lights are ON during the scans. When done, complete the information on GE form e4869 on the Service CD.

Make sure the axial drive enable and HVDC enable switches are ON.
If you are not on the Service Desktop, click on the Service Desktop icon.
Select DIAGNOSTICS.
Select DIAGNOSTIC DATA COLLECTION.
Set the scan time to 2.00.
Set the kV to 80.
Set the mA to 40.
Press ACCEPT RX.
Press START SCAN button when flashing.
Record the above information on GE Form e4879 located on the Service CD.
