STEP 18A: Install Customer Options

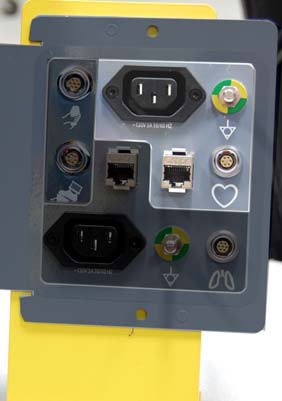

1. Install any shipped customer options (UPS, Injector, Cardiac Monitor, Accessories, Respiratory Gating, Remote Monitor, etc) according to the instructions included with each option.

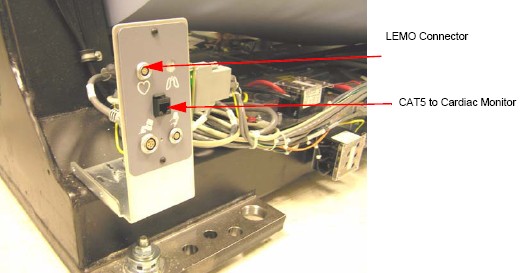

2. Locate the gantry option board. Remove the shipping brackets and install the options mounting bracket. Attach the option board to the mounting bracket.
3. If not already done, route cables between the options hardware and the gantry option board. Make all cable connections to the gantry option board.
4. Install applicable seismic brackets if locally required. Mount the Console, PDU, and UPS so they can be easily removed for service.
