1. Locate the cables in the Lean Cart or other shipping
boxes.
|
|
|

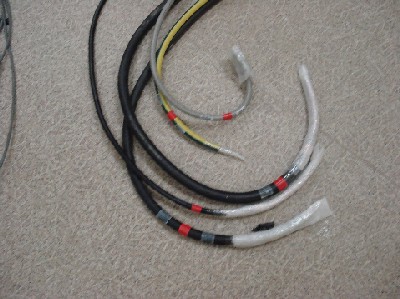

2. Segregate the cables into common runs. Use the color-coded
ends to help identify the cable runs.
|
|

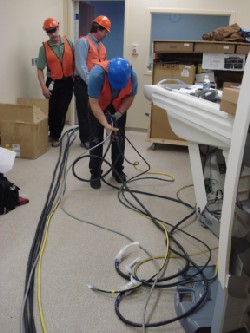

3. Unroll and lay out the cables on the floor to prepare
for pulling with fish tape or routing in cable-ways as required.
|
|
|
4. Console to Gantry: Run #56, #101, #102, #103, #112
(Cardiac), Injector, and any other options.
|
|
5. PDU to Console: Run #53.
|
|
6. PDU to Gantry: Run #50, #51, #52, #55, #100.
|
|
7. PDU to UPS: Run #60, #61.
|
|
8. UPS to A1 Main Disconnect: Run #110.
|
