Equipment Service - Table (Mechanical)

TOUCH SENSOR (JUMPER) SERVICE JUMPER

During service, the table touch sensors must remain operable for the table to fully function. To operate the table with the covers removed, the sensors must be jumpered.

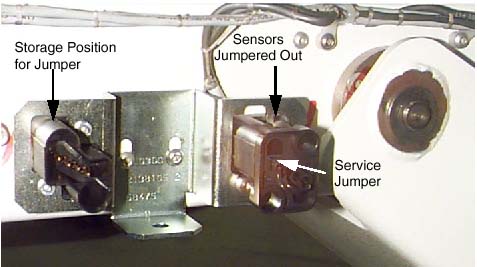

Figure 1. Table Touch Sensor Jumpered Out
