Gantry Side Covers Removal and Re-Install

Prerequisites

Overview

This procedure explains how to remove and re-install the CT Gantry side covers.

1 Side Cover Removal

Procedure

  1. Lower table to home (lowest) position.
    • caution
    • Potential for Shock.
    • Voltage may be present. Potential for injury if covers removed and power is left ON.
    • Always remove the right side cover first, and turn OFF power at the service switches.
    Notice Image
    • notice
    • Always turn OFF the HVDC before the 120 VAC. Turning OFF 120 VAC power before HVDC power can result in equipment damage.
  2. Use an 8mm Hex wrench to unlatch the side cover from the front cover. See Figure 1.

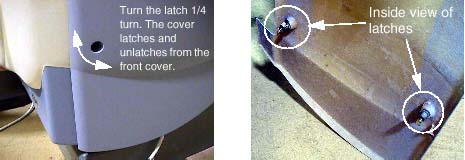

    Figure 1. Side Cover Latches

  3. Remove the right side cover by lifting it upward to release the two (2) latches, located on the top edge of the cover. See Figure 2. Once removed, the service switches should be exposed.

    Figure 2. Side and Top Cover Clasp

  4. Turn OFF the three (3) main power switches (HVDC, 120VAC, and Axial Drive) on the Service Switch Panel (SSP). See Figure 3.

    Figure 3. Service Switch Panel

  5. RepeatStep 1 throughStep 3 for the left side cover.

2 Side Cover Installation

Procedure

  1. To install a side cover, place it over the top cover and let the two (2) side cover latches slide behind the metal tabs, located on the top cover. See Figure 2.
  2. Use Hex wrench to secure the side cover to front cover by turning the bolts a quarter turn. See Figure 1.

3 Finalization

No finalization steps.
