Change Tube (New Tube) Program

Prerequisites

Overview

New Tube prepares the system to store tube usage statistics, for trend analysis, and tube warranty purposes.

Procedure

  1. Select REPLACEMENT.
  2. Select NEW TUBE CONFIG.
  3. Refer to the list in Table 3, and type/enter the failure code for the defective tube in the “Tube Unit Failure Code” field on the screen.

    failcode ENTER

  4. Refer to the Tube Housing; type/enter the new Tube’s Insert Serial Number in the appropriate field on the screen.

    Insert Serial Number

  5. Refer to the Tube Housing; type/enter the new Tube’s Housing Serial Number in the appropriate field on the screen.

    Housing Serial Number

  6. Click OK to accept these changes (see Figure 1).

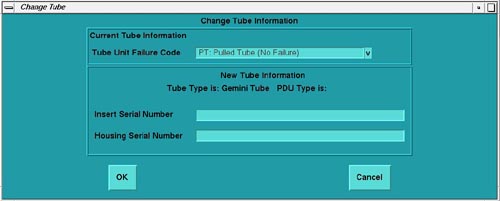

    Figure 1. Change Tube Screen

Finalization

No finalization steps.
