GDAS(4/8) Detector Flex Pinouts

note:

For a full size version of this illustration, click on the pdf icon below.

Figure 1. Full Size Illustration: Pin Connections (DAS at 12 o’clock)

42473.pdf

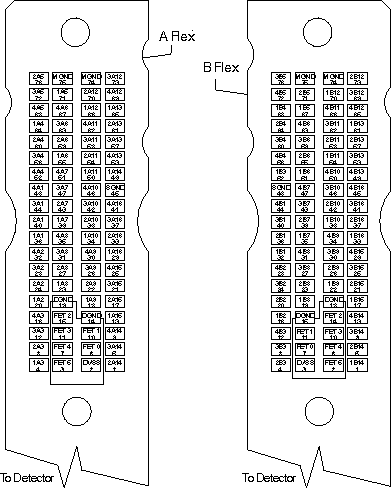

Figure 2. Pin Connections (DAS at 12 o’clock)
