DAS RTS data

This document defines the available Real Time Statistics (RTS) data available on the system for the DAS subsystem. The RTS data is sent by the DCB to the host at the end of each exam.

The RTS viewer for the DAS Stats shows a listing of information related to the DAS and Detector. See Figure 1 for a pictorial view of the data to help in understanding the information seen. The information is grouped into 3 areas for the listed exam.

• Converter Board Temperatures

• Detector Temperatures

• DAS CAN Stats summary

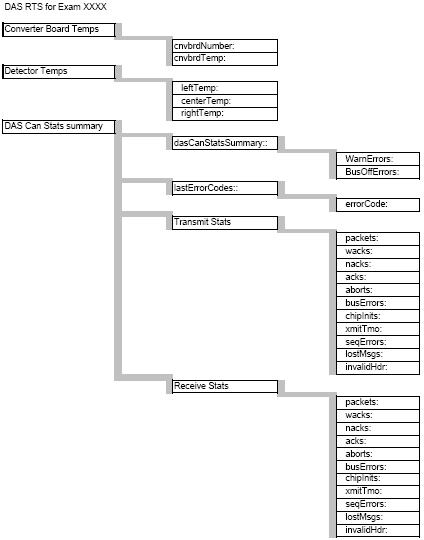

Figure 1. Pictorial view of the DAS Stats

Some of the information is repeated multiple times such as the detector temperatures for the 3 zones are listed 100 times. This is 100 samples throughout the exam.

See the Temperatures for Gantry and Detectordocument for the summary statistics of the same detector temperatures.

The DAS CAN Statistics data is repeated 3 times.

Below is a sample of the data seen with explanations and ranges defining normal operation.
